EPM1205SJ - Tamura

EPM1205SJ Frequently Asked Questions (FAQs)

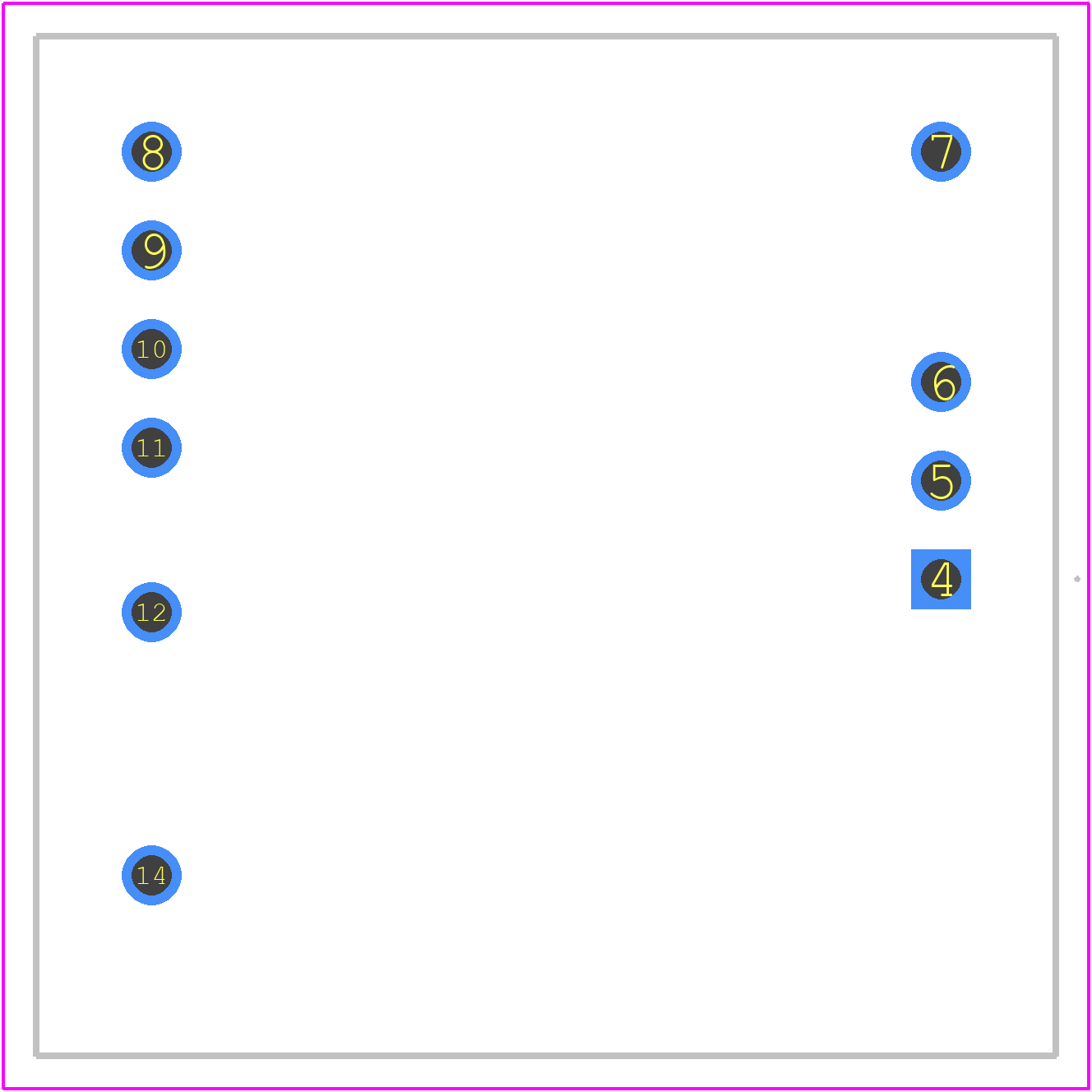

• What is the recommended PCB layout and land pattern for the EPM1205SJ?
  Tamura provides a recommended PCB layout and land pattern in their application note AN-1205, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal performance and to prevent thermal-related issues.
• How do I ensure the EPM1205SJ is properly soldered to the PCB?
  Tamura recommends using a reflow soldering process with a peak temperature of 240°C to 250°C. The soldering process should be done in a nitrogen atmosphere to prevent oxidation. Additionally, a solder paste with a melting point of 217°C or higher is recommended.
• What is the maximum allowed voltage for the EPM1205SJ?
  Although the datasheet specifies an operating voltage range of 1.8V to 5.5V, the absolute maximum rating is 6.5V. Exceeding this voltage can cause permanent damage to the device.
• How do I handle the EPM1205SJ's thermal pad during PCB assembly?
  The thermal pad should be connected to a solid copper pad on the PCB to ensure good thermal conductivity. The thermal pad should not be connected to a signal or power plane, as this can cause electrical noise and affect the device's performance.
• What is the EPM1205SJ's ESD rating?
  The EPM1205SJ has a human body model (HBM) ESD rating of 2kV and a machine model (MM) ESD rating of 200V. Proper ESD handling and protection measures should be taken during handling and assembly to prevent damage.
