EPM240T100C3N footprint, schematic symbol and 3D model by Intel

Symbol

click to zoom

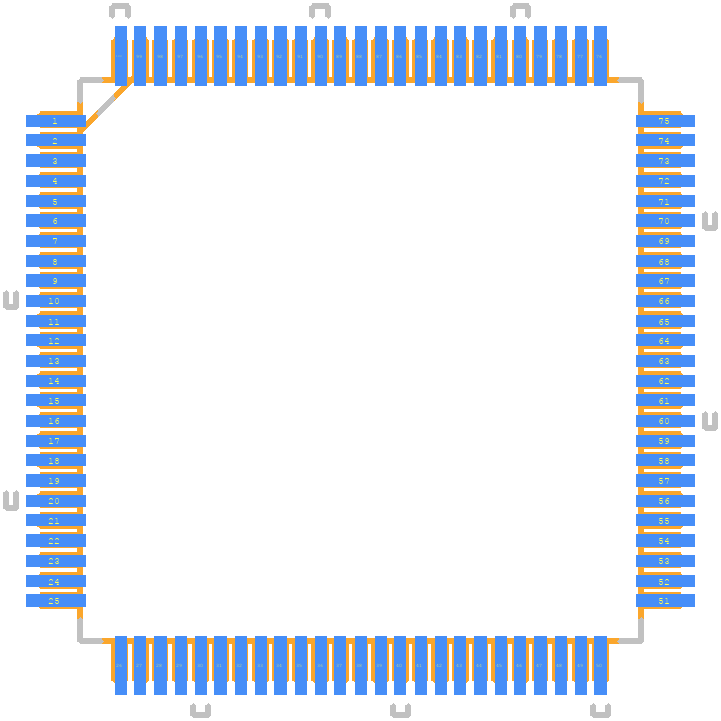

PCB Footprints

EPM240T100C3N - Intel PCB footprint - Other - Other - QFP50P1600X1600X120-100N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EPM240T100C3N
Part Number EPM240T100C3N
Manufacturer Intel
Pin Count 100
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFP50P1600X1600X120-100N
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

EPM240T100C3N Details

Manufacturer Part Number:
EPM240T100C3N
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
TQFP-100
Country Of Origin:
Mainland China, Malaysia, Taiwan, USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Intel Corporation
YTEOL:
5.4
Additional Feature:
IT CAN ALSO OPERATE AT 3.3V
Clock Frequency-Max:
304 MHz
In-System Programmable:
YES
JESD-30 Code:
S-PQFP-G100
JESD-609 Code:
e3
JTAG BST:
YES
Length:
14 mm
Moisture Sensitivity Level:
3
Number of I/O Lines:
80
Number of Inputs:
80
Number of Macro Cells:
192
Number of Outputs:
80
Number of Terminals:
100
Operating Temperature-Max:
85 °C
Organization:
0 DEDICATED INPUTS, 80 I/O
Output Function:
MACROCELL
Package Body Material:
PLASTIC/EPOXY
Package Code:
TFQFP
Package Equivalence Code:
TQFP100,.63SQ
Package Shape:
SQUARE
Package Style:
FLATPACK, THIN PROFILE, FINE PITCH
Programmable Logic Type:
FLASH PLD
Propagation Delay:
4.7 ns
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
2.625 V
Supply Voltage-Min:
2.375 V
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
OTHER
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
14 mm

EPM240T100C3N Frequently Asked Questions (FAQs)

The recommended operating temperature range for the EPM240T100C3N is 0°C to 85°C (commercial temperature range) or -40°C to 100°C (industrial temperature range), depending on the specific device grade.
The EPM240T100C3N can use an external clock signal or generate its own clock signal using an internal oscillator. For an external clock signal, connect a 1.8V to 3.3V clock signal to the CLK pin. For an internal oscillator, connect a 1.8V to 3.3V power supply to the VCC pin and use the internal oscillator configuration bits to enable the internal oscillator.
The maximum frequency of operation for the EPM240T100C3N is 240 MHz, but this can vary depending on the specific device grade and operating conditions.
To configure the EPM240T100C3N for low power consumption, use the power management features such as clock gating, power gating, and dynamic voltage and frequency scaling. Additionally, use the lowest possible voltage and frequency for the application, and consider using the device's sleep mode or standby mode when not in use.
The maximum current consumption of the EPM240T100C3N varies depending on the specific device grade and operating conditions. However, the typical current consumption is around 100-200 mA at 1.8V and 240 MHz.

Trust Checks

System Verified

EPM240T100C3N Overview

Use the download button to access the EPM240T100C3N schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EPM24, or try a keyword search, such as Programmable Logic Devices
