EPM3032ALC44-10 footprint, schematic symbol and 3D model by Intel

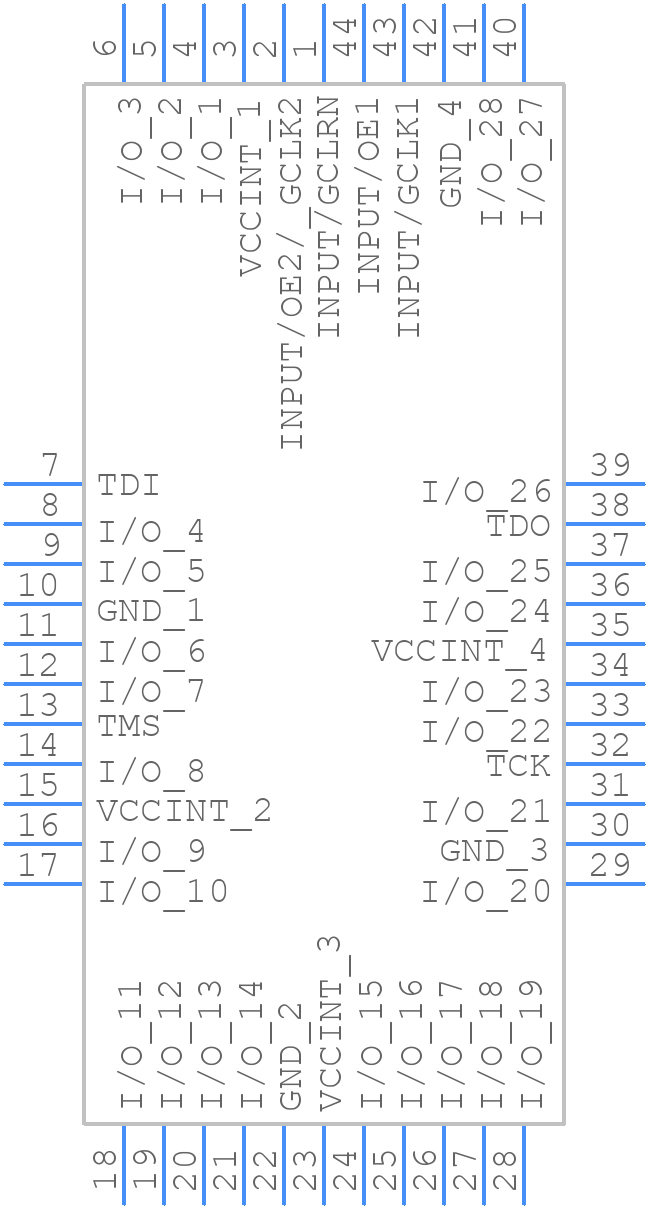

Symbol

click to zoom

PCB Footprints

EPM3032ALC44-10 - Intel PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - (44-Pin) J-LEAD Chip Carrier PLCC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EPM3032ALC44-10
Part Number EPM3032ALC44-10
Manufacturer Intel
Pin Count 44
Part Category Connector
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - (44-Pin) J-LEAD Chip Carrier PLCC
Released Date Aug 29, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EPM3032ALC44-10 Details

Manufacturer Part Number:
EPM3032ALC44-10
Part Life Cycle Code:
Obsolete
Package Description:
PLASTIC, LCC-44
HTS Code:
8542.31.00.55
Manufacturer:
Intel Corporation
YTEOL:
0
Additional Feature:
YES
Clock Frequency-Max:
103.1 MHz
In-System Programmable:
YES
JESD-30 Code:
S-PQCC-J44
JESD-609 Code:
e0
JTAG BST:
YES
Length:
16.5862 mm
Moisture Sensitivity Level:
1
Number of I/O Lines:
30
Number of Inputs:
34
Number of Macro Cells:
32
Number of Outputs:
10
Number of Terminals:
44
Operating Temperature-Max:
70 °C
Organization:
0 DEDICATED INPUTS, 30 I/O
Output Function:
MACROCELL
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Equivalence Code:
LDCC44,.7SQ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Programmable Logic Type:
EE PLD
Propagation Delay:
10 ns
Qualification Status:
Not Qualified
Seated Height-Max:
4.572 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
TIN LEAD
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Width:
16.5862 mm

EPM3032ALC44-10 Frequently Asked Questions (FAQs)

Intel provides a reference design guide for PCB layout and thermal management in the 'EPM3032A Device Handbook' document. It recommends a 4-layer PCB with a dedicated power plane, and thermal vias under the device to improve heat dissipation.
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which monitors the VCC supply voltage and asserts a reset signal to the EPM3032ALC44-10 when the voltage is below a certain threshold.
The maximum operating frequency of EPM3032ALC44-10 is 10 MHz. Operating at higher frequencies can increase power consumption, but the device can also be operated at lower frequencies to reduce power consumption. The power consumption can be estimated using the 'Power Consumption' section in the datasheet.
To ensure reliable configuration, Intel recommends using a configuration device, such as the EPCS16SI16, which stores the configuration data and provides a reliable power-up sequence. The configuration device should be connected to the EPM3032ALC44-10 according to the recommended configuration interface.
To implement a reliable JTAG boundary scan, ensure that the JTAG signals are properly terminated, and the JTAG clock frequency is within the recommended range. Also, use a JTAG controller that supports the IEEE 1149.1 standard, and follow the guidelines in the 'JTAG Boundary Scan' section of the datasheet.

Trust Checks

Community Provided

System Verified

Community Approved

EPM3032ALC44-10 Overview

Use the download button to access the EPM3032ALC44-10 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EPM30, or try a keyword search, such as Programmable Logic Devices
