EPM3032ALC44-10N footprint, schematic symbol and 3D model by Intel

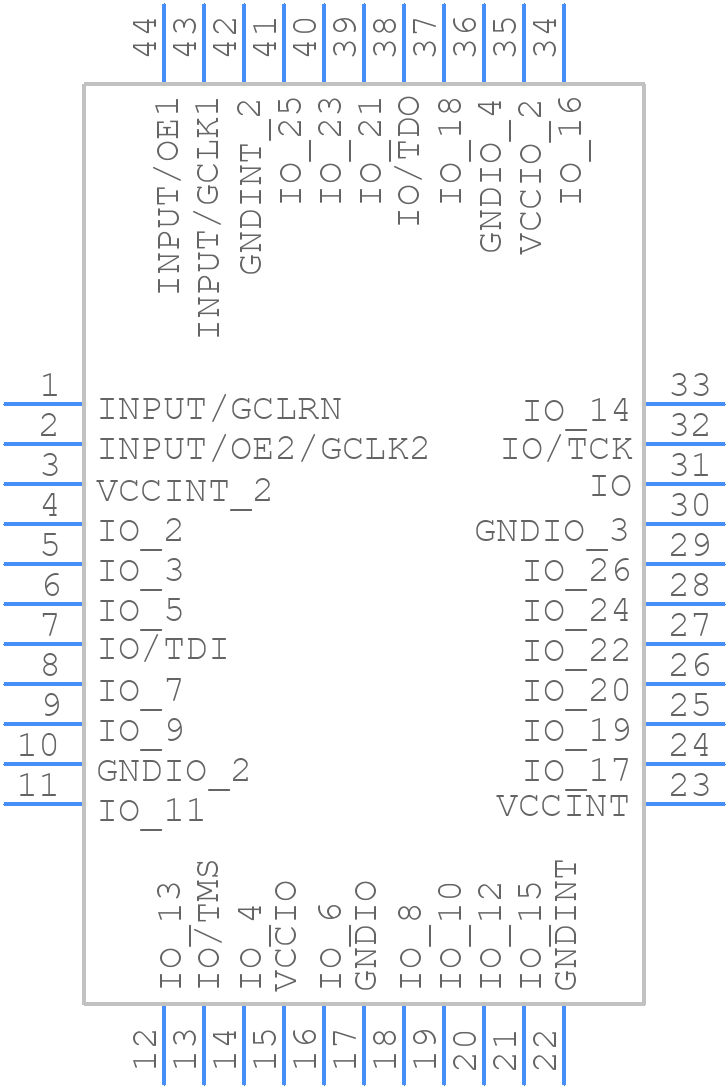

Symbol

click to zoom

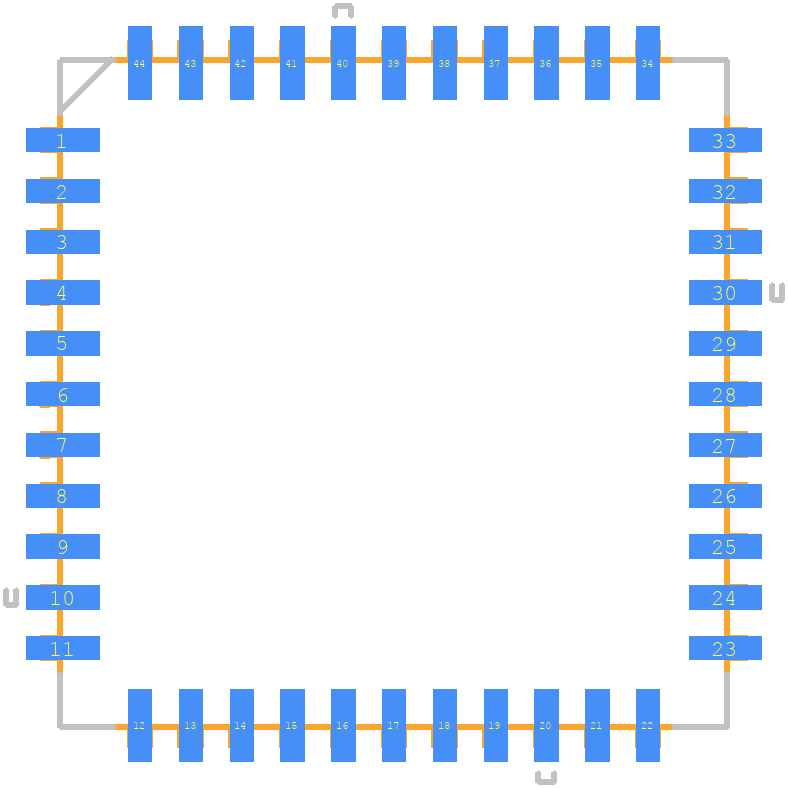

PCB Footprints

EPM3032ALC44-10N - Intel PCB footprint - Other - Other - PLCC127P1752X1752X457-44N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EPM3032ALC44-10N
Part Number EPM3032ALC44-10N
Manufacturer Intel
Pin Count 44
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - PLCC127P1752X1752X457-44N
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

EPM3032ALC44-10N Details

Manufacturer Part Number:
EPM3032ALC44-10N
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
PLASTIC, LCC-44
HTS Code:
8542.31.00.55
Manufacturer:
Intel Corporation
YTEOL:
0
Additional Feature:
YES
Clock Frequency-Max:
103.1 MHz
In-System Programmable:
YES
JESD-30 Code:
S-PQCC-J44
JESD-609 Code:
e3
JTAG BST:
YES
Length:
16.5862 mm
Moisture Sensitivity Level:
3
Number of I/O Lines:
30
Number of Inputs:
34
Number of Macro Cells:
32
Number of Outputs:
10
Number of Terminals:
44
Operating Temperature-Max:
70 °C
Organization:
0 DEDICATED INPUTS, 30 I/O
Output Function:
MACROCELL
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Equivalence Code:
LDCC44,.7SQ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Programmable Logic Type:
EE PLD
Propagation Delay:
10 ns
Qualification Status:
Not Qualified
Seated Height-Max:
4.572 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
MATTE TIN
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Width:
16.5862 mm

EPM3032ALC44-10N Frequently Asked Questions (FAQs)

The recommended operating temperature range for the EPM3032ALC44-10N is 0°C to 85°C (commercial temperature range) or -40°C to 100°C (industrial temperature range), depending on the specific application and requirements.
The EPM3032ALC44-10N requires a specific power-up and power-down sequencing to ensure proper operation. It is recommended to power up the device in the following order: VCC, VCCIO, and then clock signals. During power-down, the sequence should be reversed.
The maximum allowable voltage for the EPM3032ALC44-10N's I/O pins is 3.6V, which is the maximum voltage rating for the device's I/O banks.
Clock signal routing and termination are critical for the EPM3032ALC44-10N. It is recommended to use a clock tree architecture with a central clock source and to terminate clock signals with a 50-ohm resistor to prevent signal reflection and ensure signal integrity.
The EPM3032ALC44-10N requires a robust power supply decoupling scheme to ensure stable operation. It is recommended to use a combination of ceramic and electrolytic capacitors with a total capacitance of at least 100nF per power pin, with a maximum distance of 1 inch from the device.
