The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the device away from other heat sources. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable programming and configuration of the device, use a reliable programming tool, such as the Intel Quartus II software, and follow the recommended programming and configuration procedures outlined in the datasheet and user manuals.
The power-up and power-down sequencing requirements for the device involve powering up the VCCINT and VCCA pins simultaneously, followed by the VCCIO pin. During power-down, the sequence should be reversed. Refer to the datasheet for specific voltage and timing requirements.
To prevent damage, handle the device by the body or the pins, avoiding touching the die. Store the device in an anti-static bag or wrap it in anti-static material, and avoid exposing it to extreme temperatures, humidity, or physical stress.
Thermal management considerations for the device involve providing adequate airflow, using a heat sink if necessary, and ensuring that the device is not exposed to extreme temperatures. The device has a maximum junction temperature of 85°C.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM3032ATC44-10N Overview

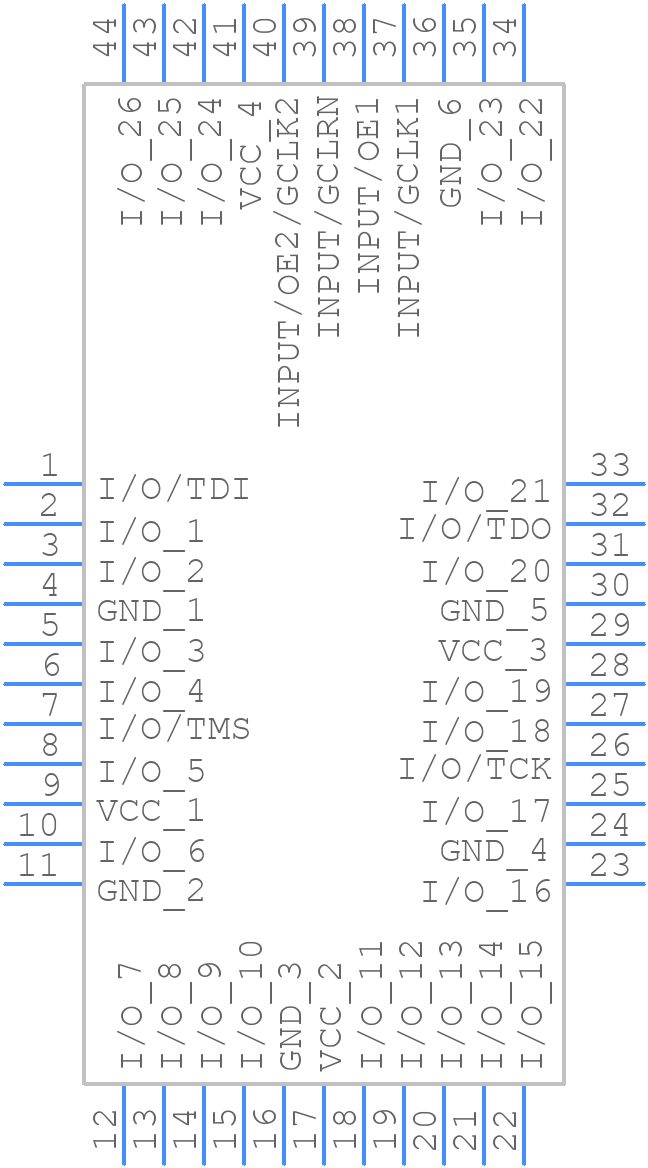

Use the download button to access the EPM3032ATC44-10N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM30,
or try a keyword search, such as Programmable Logic Devices
