EPM3032ATC44-4N - Intel

Description: Programmable Logic Device

Download EPM3032ATC44-4N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

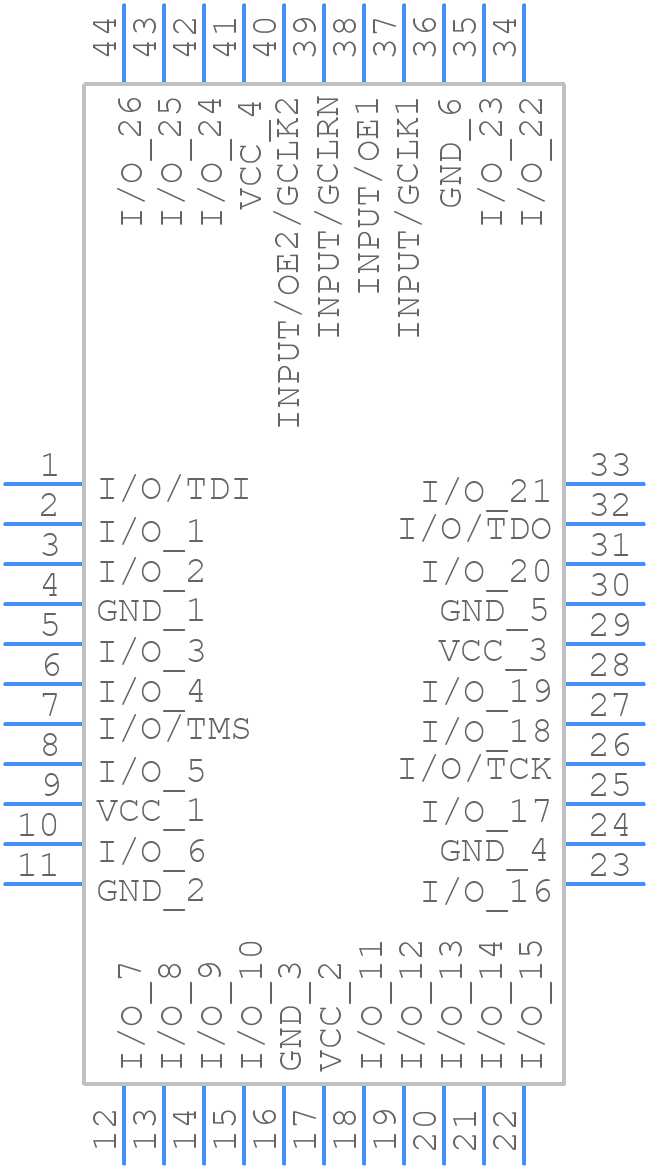

EPM3032ATC44-4N - Intel - PCB symbol
click to zoom
PCB Footprints
EPM3032ATC44-4N - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - 44-TQFP
click to zoom
3D Models
EPM3032ATC44-4N - Intel - 3D model - Quad Flat Packages - 44-TQFP
click to zoom

EPM3032ATC44-4N Details

  • Manufacturer Part Number:

    EPM3032ATC44-4N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TQFP-44

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    0

  • Additional Feature:

    YES

  • Clock Frequency-Max:

    227.3 MHz

  • In-System Programmable:

    YES

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • JTAG BST:

    YES

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    30

  • Number of Inputs:

    34

  • Number of Macro Cells:

    32

  • Number of Outputs:

    10

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Organization:

    0 DEDICATED INPUTS, 30 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    TQFP44,.47SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Programmable Logic Type:

    EE PLD

  • Propagation Delay:

    4.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.27 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

EPM3032ATC44-4N Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the EPM3032ATC44-4N is 0°C to 85°C (commercial temperature range) or -40°C to 100°C (industrial temperature range), depending on the specific application and requirements.
  • A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which can detect power-on and power-down conditions and generate a reset signal to the EPM3032ATC44-4N. The voltage supervisor IC should be connected to the VCC pin of the EPM3032ATC44-4N.
  • The maximum clock frequency supported by the EPM3032ATC44-4N is 150 MHz. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal.
  • To ensure reliable configuration of the EPM3032ATC44-4N during power-up, it is recommended to use a configuration device, such as a serial configuration device or a flash memory device, to store the configuration data. The configuration data should be loaded into the EPM3032ATC44-4N during power-up using a reliable configuration interface, such as JTAG or AS.
  • The guidelines for PCB layout and routing for the EPM3032ATC44-4N include using a multi-layer PCB with a solid ground plane, separating analog and digital signals, using controlled impedance traces for high-speed signals, and minimizing signal reflections and crosstalk.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EPM3032ATC44-4N Overview

Use the download button to access the EPM3032ATC44-4N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM30, or try a keyword search, such as Programmable Logic Devices
