A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
Use the Intel Quartus Prime software to program and configure the FPGA. Ensure that the device is properly powered and clocked before programming, and follow the recommended programming sequence outlined in the datasheet.
The power supplies should be sequenced in the following order: VCCIO, VCC, and VCCA. The power supplies should be ramped up slowly to prevent damage to the device.
The JTAG interface should be connected to a JTAG header or a programming cable. Ensure that the JTAG clock frequency is within the recommended range (typically 6-33 MHz) and that the JTAG signals are properly terminated.
Use controlled impedance routing and follow the recommended routing guidelines outlined in the datasheet. Ensure that high-speed signals are routed away from noise sources and that signal return paths are minimized.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
EPM3064ATC44-4N Overview

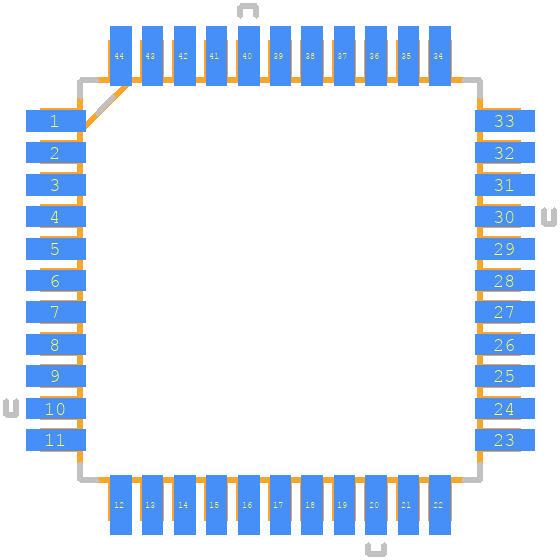

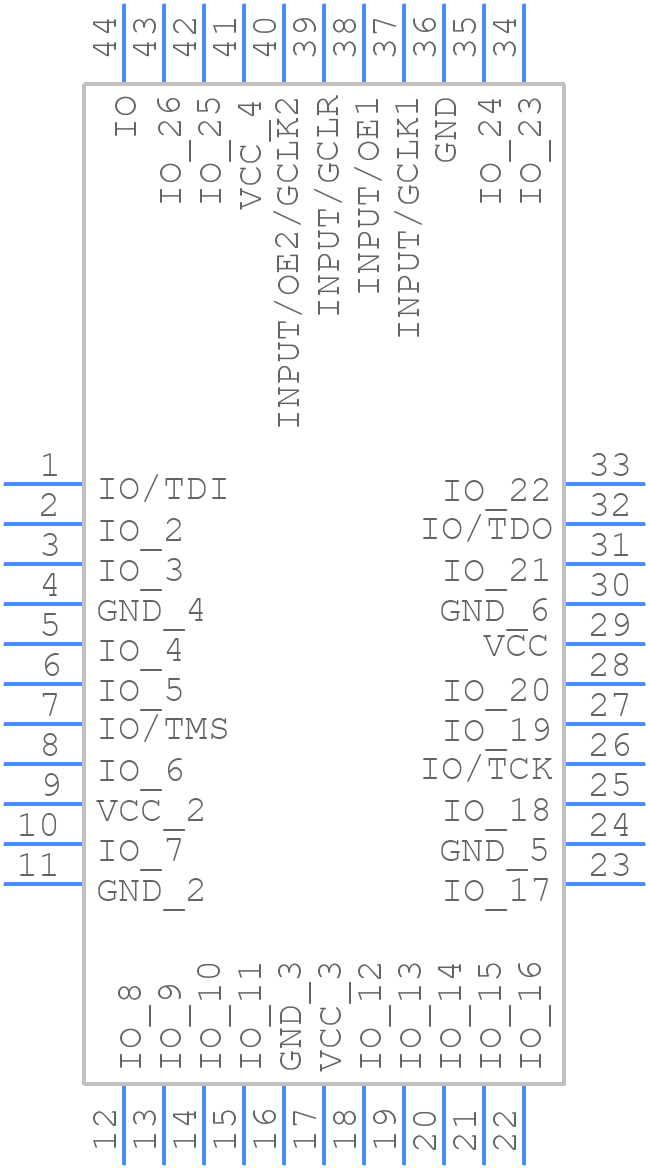

Use the download button to access the EPM3064ATC44-4N schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM30,
or try a keyword search, such as Programmable Logic Devices
