- Part Number EPM3256AFC256-7
- Manufacturer Intel
- Pin Count 256
- Part Category Integrated Circuit
- Package Category BGA

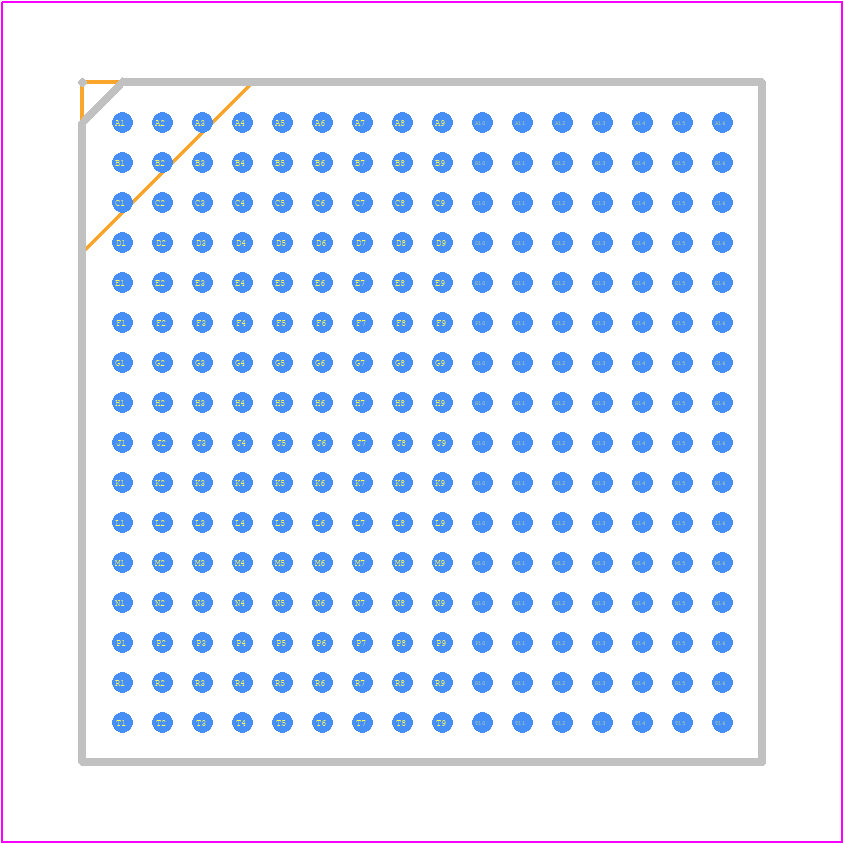

- Footprint Name BGA - 256-FBGA (17x17) (option1)
- Released Date Nov 24, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EPM3256AFC256-7 Details
-
Manufacturer Part Number:
EPM3256AFC256-7
-
Part Life Cycle Code:
Obsolete
-
Package Description:
FINE LINE, BGA-256
-
HTS Code:
8542.31.00.55
-
Manufacturer:
Intel Corporation
-
YTEOL:
0
-
Additional Feature:
YES
-
Clock Frequency-Max:
126.6 MHz
-
In-System Programmable:
YES
-
JESD-30 Code:
S-PBGA-B256
-
JESD-609 Code:
e0
