The recommended power-up sequence is to apply VCCINT first, followed by VCCIO, and then configure the device. This ensures that the internal voltage regulators are powered up correctly.
To implement a reliable clock tree, use the dedicated clock networks (GCLK) and follow Intel's guidelines for clock tree design, including using a single clock source, minimizing clock skew, and using clock enable signals to control clock domains.
The EPM570F100I5N has limited internal memory (M4K blocks), which can be a limitation for designs that require large amounts of memory. Consider using external memory or optimizing your design to minimize memory usage.
To optimize power consumption, use Intel's PowerPlay power analysis tool, enable power-saving features like clock gating and dynamic voltage frequency scaling, and optimize your design's clock frequency and voltage.
The EPM570F100I5N has a maximum junction temperature of 100°C. Ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a heat sink or thermal interface material to manage heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM570F100I5N Overview

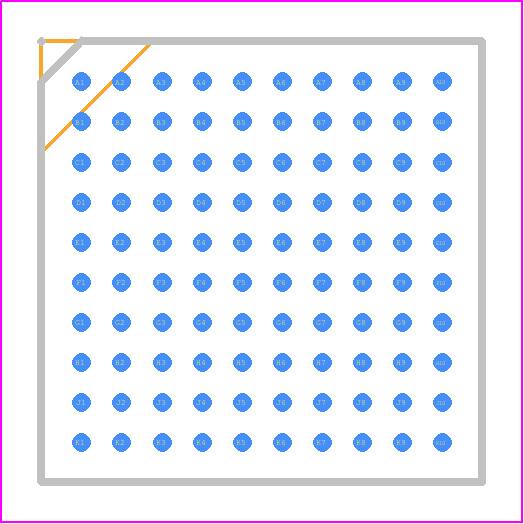

Use the download button to access the EPM570F100I5N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM57,
or try a keyword search, such as Programmable Logic Devices
