EPM7032AELC44-10 footprint, schematic symbol and 3D model by Intel

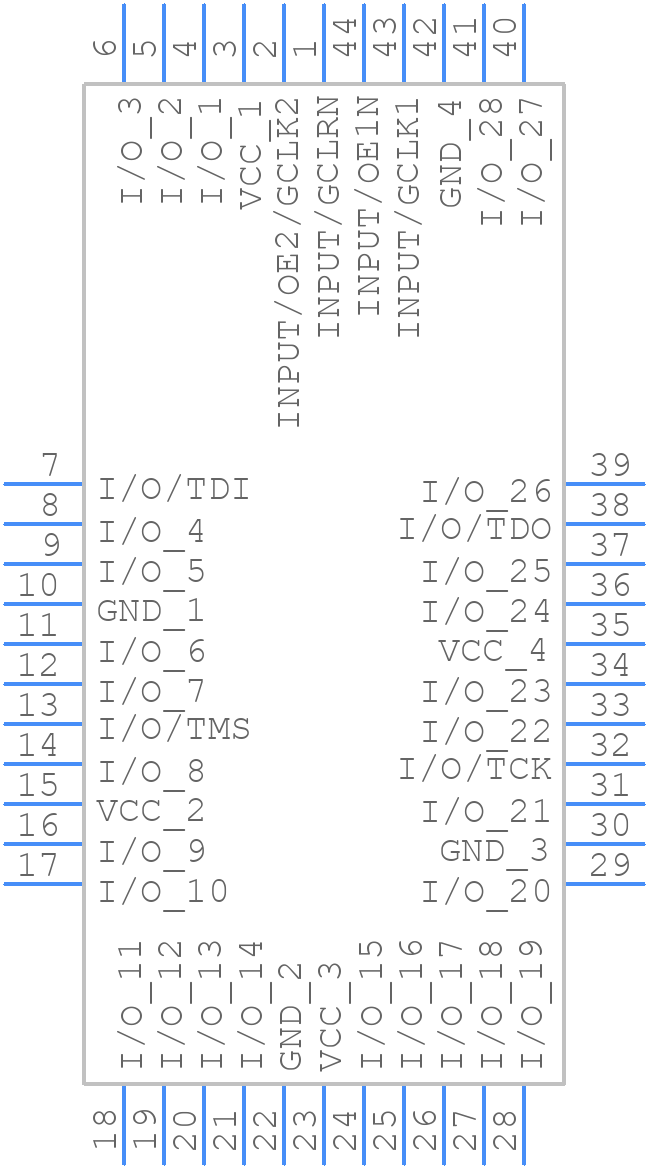

Symbol

click to zoom

PCB Footprints

EPM7032AELC44-10 - Intel PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - (44-Pin) J-LEAD Chip Carrier PLCC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EPM7032AELC44-10
Part Number EPM7032AELC44-10
Manufacturer Intel
Pin Count 44
Part Category Integrated Circuit
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - (44-Pin) J-LEAD Chip Carrier PLCC
Released Date Oct 4, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EPM7032AELC44-10 Details

Manufacturer Part Number:
EPM7032AELC44-10
Part Life Cycle Code:
Obsolete
Package Description:
PLASTIC, LCC-44
HTS Code:
8542.31.00.55
Manufacturer:
Intel Corporation
YTEOL:
0
Additional Feature:
32 MACROCELLS; 2 LABS; CONFIGURABLE I/O OPERATION WITH 2.5 OR 3.3
Clock Frequency-Max:
103.1 MHz
In-System Programmable:
YES
JESD-30 Code:
S-PQCC-J44
JESD-609 Code:
e0
JTAG BST:
YES
Length:
16.5862 mm
Moisture Sensitivity Level:
1
Number of Dedicated Inputs:
4
Number of I/O Lines:
36
Number of Inputs:
40
Number of Macro Cells:
32
Number of Outputs:
36
Number of Terminals:
44
Operating Temperature-Max:
70 °C
Organization:
4 DEDICATED INPUTS, 36 I/O
Output Function:
MACROCELL
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Equivalence Code:
LDCC44,.7SQ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Programmable Logic Type:
EE PLD
Propagation Delay:
10 ns
Qualification Status:
Not Qualified
Seated Height-Max:
4.57 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
TIN LEAD
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Width:
16.5862 mm

EPM7032AELC44-10 Frequently Asked Questions (FAQs)

Intel provides a PCB design guide and thermal management guidelines in their documentation, which can be found on their website. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
Intel recommends using an external POR circuit with a voltage supervisor IC, such as the MAX809, to ensure a reliable power-on reset. The datasheet provides guidelines for the POR circuit design.
The EPM7032AELC44-10 requires a JTAG programming voltage of 3.3V, and the JTAG clock frequency should be limited to 10 MHz. Additionally, Intel provides a JTAG programming guide and software tools for programming and debugging the device.
To ensure signal integrity and reduce EMI, it's essential to follow Intel's guidelines for signal routing, termination, and shielding. Additionally, using a 4-layer PCB with a solid ground plane and a low-impedance power distribution network can help reduce EMI.
The EPM7032AELC44-10 is rated for commercial temperature operation (0°C to 70°C) and is sensitive to moisture and humidity. It's essential to follow Intel's guidelines for storage, handling, and operating conditions to ensure device reliability.

Trust Checks

Expert Contribution

System Verified

Community Approved

EPM7032AELC44-10 Overview

Use the download button to access the EPM7032AELC44-10 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EPM70, or try a keyword search, such as Programmable Logic Devices
