EPM7064AELI44-7 footprint, schematic symbol and 3D model by Intel

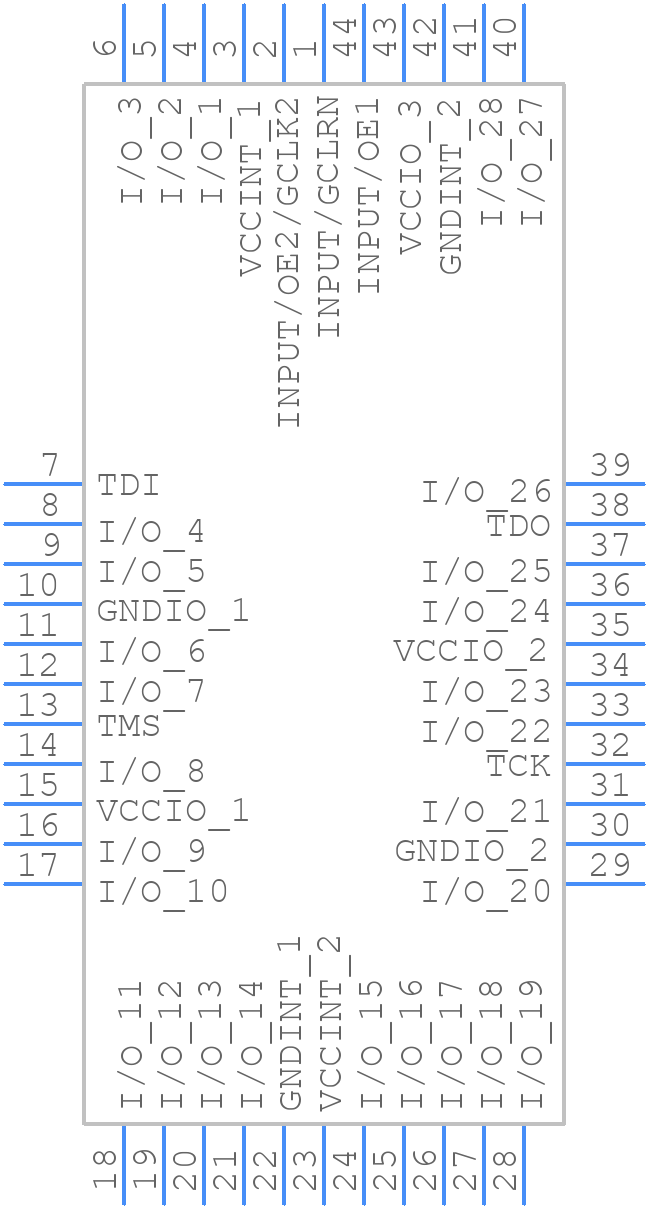

Symbol

click to zoom

PCB Footprints

EPM7064AELI44-7 - Intel PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - (44-Pin) J-LEAD Chip Carrier PLCC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EPM7064AELI44-7
Part Number EPM7064AELI44-7
Manufacturer Intel
Pin Count 44
Part Category Integrated Circuit
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - (44-Pin) J-LEAD Chip Carrier PLCC
Released Date Oct 2, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EPM7064AELI44-7 Details

Manufacturer Part Number:
EPM7064AELI44-7
Part Life Cycle Code:
Obsolete
Package Description:
PLASTIC, LCC-44
HTS Code:
8542.31.00.55
Manufacturer:
Intel Corporation
YTEOL:
0
Additional Feature:
64 MICROCELLS; 4 LABS; CONFIGURABLE I/O OPERATION WITH 2.5 OR 3.3
Clock Frequency-Max:
135.1 MHz
In-System Programmable:
YES
JESD-30 Code:
S-PQCC-J44
JESD-609 Code:
e0
JTAG BST:
YES
Length:
16.5862 mm
Moisture Sensitivity Level:
1
Number of Dedicated Inputs:
4
Number of I/O Lines:
36
Number of Inputs:
40
Number of Macro Cells:
64
Number of Outputs:
36
Number of Terminals:
44
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Organization:
4 DEDICATED INPUTS, 36 I/O
Output Function:
MACROCELL
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Equivalence Code:
LDCC44,.7SQ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Programmable Logic Type:
EE PLD
Propagation Delay:
7.5 ns
Qualification Status:
Not Qualified
Seated Height-Max:
4.57 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
TIN LEAD
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Width:
16.5862 mm

EPM7064AELI44-7 Frequently Asked Questions (FAQs)

Intel provides a PCB design guide and thermal management guidelines in their documentation, which can be found on their website. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
Intel recommends using an external POR circuit with a voltage supervisor IC, such as the MAX809, to ensure a reliable power-on reset. The datasheet provides more information on the POR requirements.
The EPM7064AELI44-7 can be configured using various methods, including JTAG, AS, and PS mode. Intel provides configuration software, such as the Quartus II software, to implement these options. Refer to the configuration user guide for more information.
To ensure signal integrity and reduce EMI, follow Intel's guidelines for signal routing, termination, and shielding. Use differential signaling, keep clock lines short, and use EMI-reducing techniques such as spread spectrum clocking.
The EPM7064AELI44-7 is rated for commercial temperature range (0°C to 70°C) and industrial temperature range (-40°C to 100°C). Ensure your design operates within these conditions to guarantee reliable operation.

Trust Checks

Community Provided

System Verified

Community Approved

EPM7064AELI44-7 Overview

Use the download button to access the EPM7064AELI44-7 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EPM70, or try a keyword search, such as Programmable Logic Devices
