The recommended operating temperature range for the EPM7064AETC44-10N is 0°C to 85°C (commercial temperature range) or -40°C to 100°C (industrial temperature range), depending on the specific application and requirements.
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which can detect power-on and power-down conditions and generate a reset signal to the EPM7064AETC44-10N. The POR circuit should be designed to ensure that the FPGA is properly reset during power-up and power-down sequences.
For optimal performance and signal integrity, it is recommended to follow Intel's guidelines for PCB layout and routing, including using a 4-layer PCB with a solid ground plane, separating analog and digital signals, and using controlled impedance routing for high-speed signals.
To ensure reliable configuration and programming of the EPM7064AETC44-10N, use a reliable configuration device, such as the EPCQ-B, and follow Intel's guidelines for configuration and programming, including using a robust clocking scheme and ensuring that the configuration data is correctly formatted and transmitted.
To minimize EMI and ensure EMC, follow Intel's guidelines for EMI reduction, including using shielding, filtering, and grounding techniques, and ensuring that the PCB layout and routing are designed to minimize radiation and susceptibility to external interference.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM7064AETC44-10N Overview

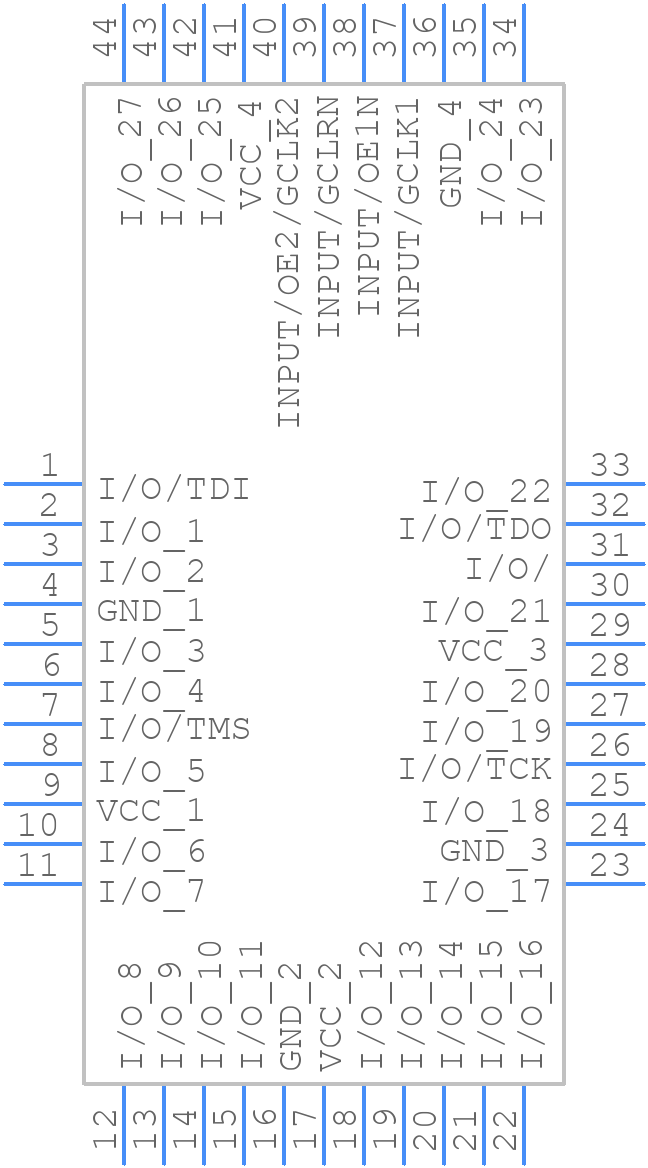

Use the download button to access the EPM7064AETC44-10N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM70,
or try a keyword search, such as Programmable Logic Devices
