The recommended operating temperature range for the EPM7064AETI44-7 is 0°C to 85°C (commercial temperature range) or -40°C to 100°C (industrial temperature range), depending on the specific application and requirements.
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which can detect power-on and power-down events and generate a reset signal to the EPM7064AETI44-7. The voltage supervisor IC should be connected to the VCC pin of the EPM7064AETI44-7.
The maximum clock frequency supported by the EPM7064AETI44-7 is 150 MHz. However, the actual clock frequency may be limited by the specific application and the quality of the clock signal.
To ensure reliable configuration of the EPM7064AETI44-7 during power-up, it is recommended to use a configuration device, such as a serial configuration device or a flash memory device, to store the configuration data. The configuration data should be loaded into the EPM7064AETI44-7 during power-up using a reliable configuration interface, such as JTAG or AS.
The guidelines for PCB layout and routing for the EPM7064AETI44-7 include using a multi-layer PCB with a solid ground plane, keeping signal traces short and direct, avoiding vias and jumps, and using decoupling capacitors to reduce noise and improve signal integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM7064AETI44-7 Overview

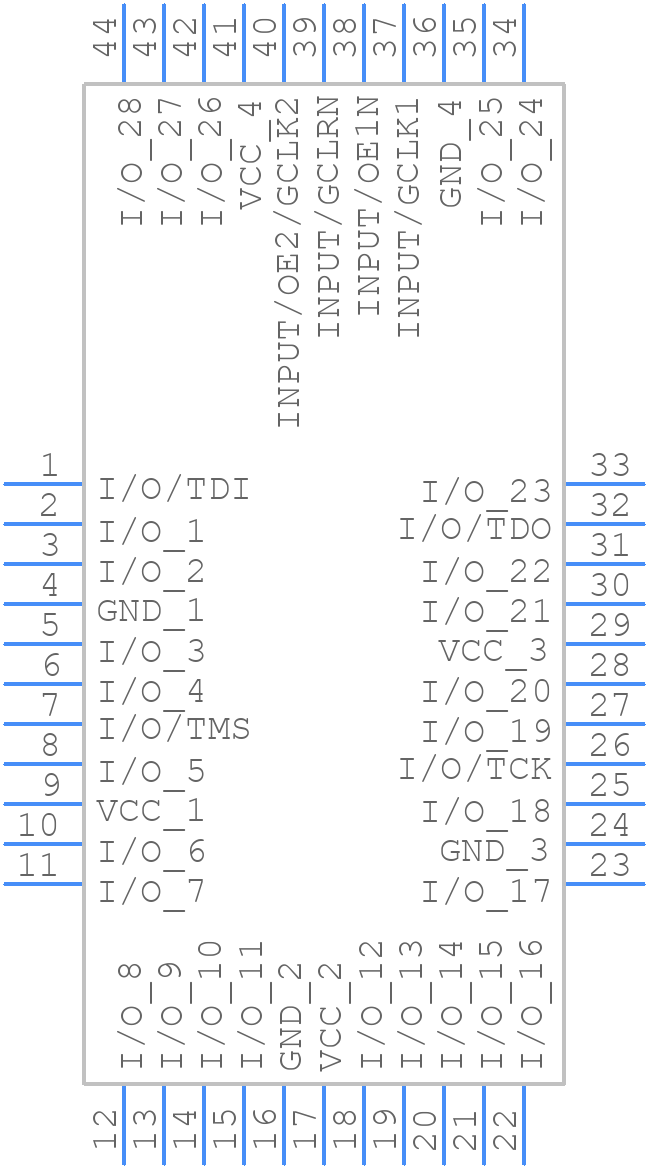

Use the download button to access the EPM7064AETI44-7 schematic symbol, PCB footprint, and 3D model.
