The recommended operating temperature range for the EPM7064AETI44-7N is 0°C to 85°C (commercial temperature range) or -40°C to 100°C (industrial temperature range), depending on the specific application and requirements.
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which can detect power-on and power-down conditions and generate a reset signal to the EPM7064AETI44-7N. The POR circuit should be designed to ensure that the FPGA is properly reset during power-up and power-down sequences.
For optimal performance and signal integrity, it is recommended to follow Intel's guidelines for PCB layout and routing, including using a 4-layer PCB with a solid ground plane, separating analog and digital signals, and using controlled impedance routing for high-speed signals.
To ensure reliable configuration and programming of the EPM7064AETI44-7N, use a reliable configuration device, such as the Intel Quartus II software, and follow Intel's guidelines for configuration and programming, including using a stable clock source and ensuring proper power supply sequencing.
To minimize EMI and ensure EMC, follow Intel's guidelines for EMI reduction, including using shielding, filtering, and grounding techniques, and ensuring that the PCB layout and routing are designed to minimize radiation and susceptibility to external interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM7064AETI44-7N Overview

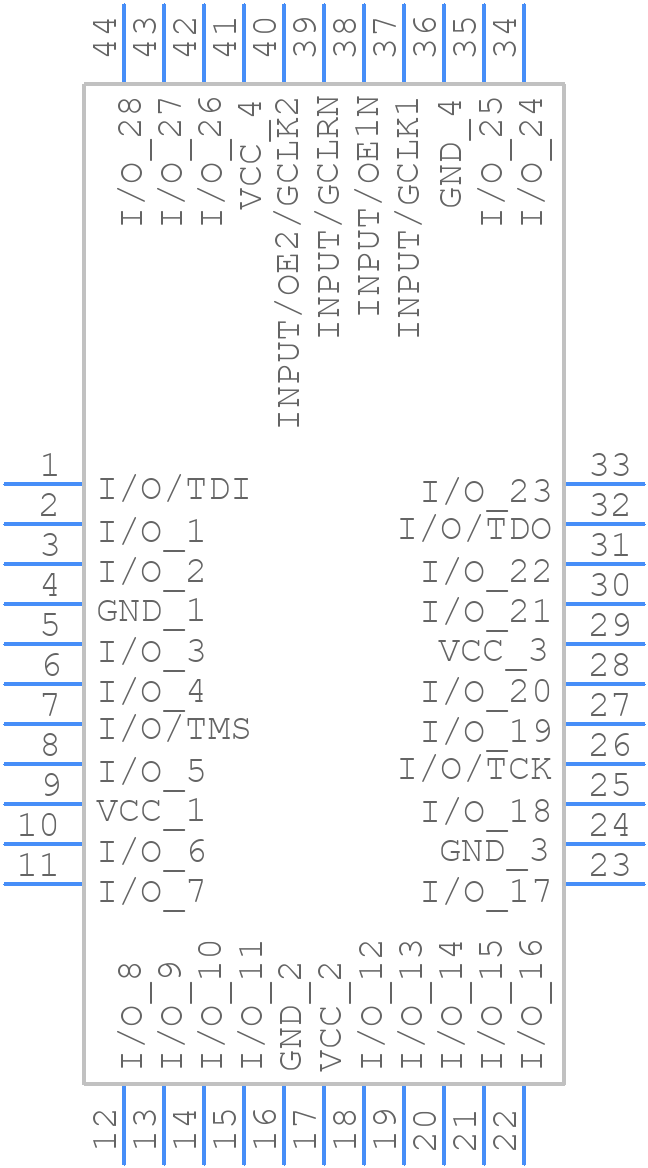

Use the download button to access the EPM7064AETI44-7N schematic symbol, PCB footprint, and 3D model.
