The recommended operating temperature range for the EPM7064SLC84-10N is 0°C to 85°C (commercial temperature range) or -40°C to 100°C (industrial temperature range), depending on the specific application and requirements.
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which can detect power-on and power-down sequences and generate a reset signal to the EPM7064SLC84-10N. The voltage supervisor IC should be connected to the VCC pin of the EPM7064SLC84-10N.
The maximum clock frequency supported by the EPM7064SLC84-10N is 100 MHz. However, the actual clock frequency may be limited by the specific application and the clock signal quality.
To ensure reliable configuration of the EPM7064SLC84-10N during power-up, it is recommended to use a configuration device, such as an EPCS16 or EPCS64, which can store the configuration data and provide a reliable configuration signal to the EPM7064SLC84-10N.
For optimal performance and signal integrity, it is recommended to follow Intel's guidelines for PCB layout and routing, including using a solid ground plane, minimizing signal trace lengths, and using controlled impedance traces for clock and data signals.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM7064SLC84-10N Overview

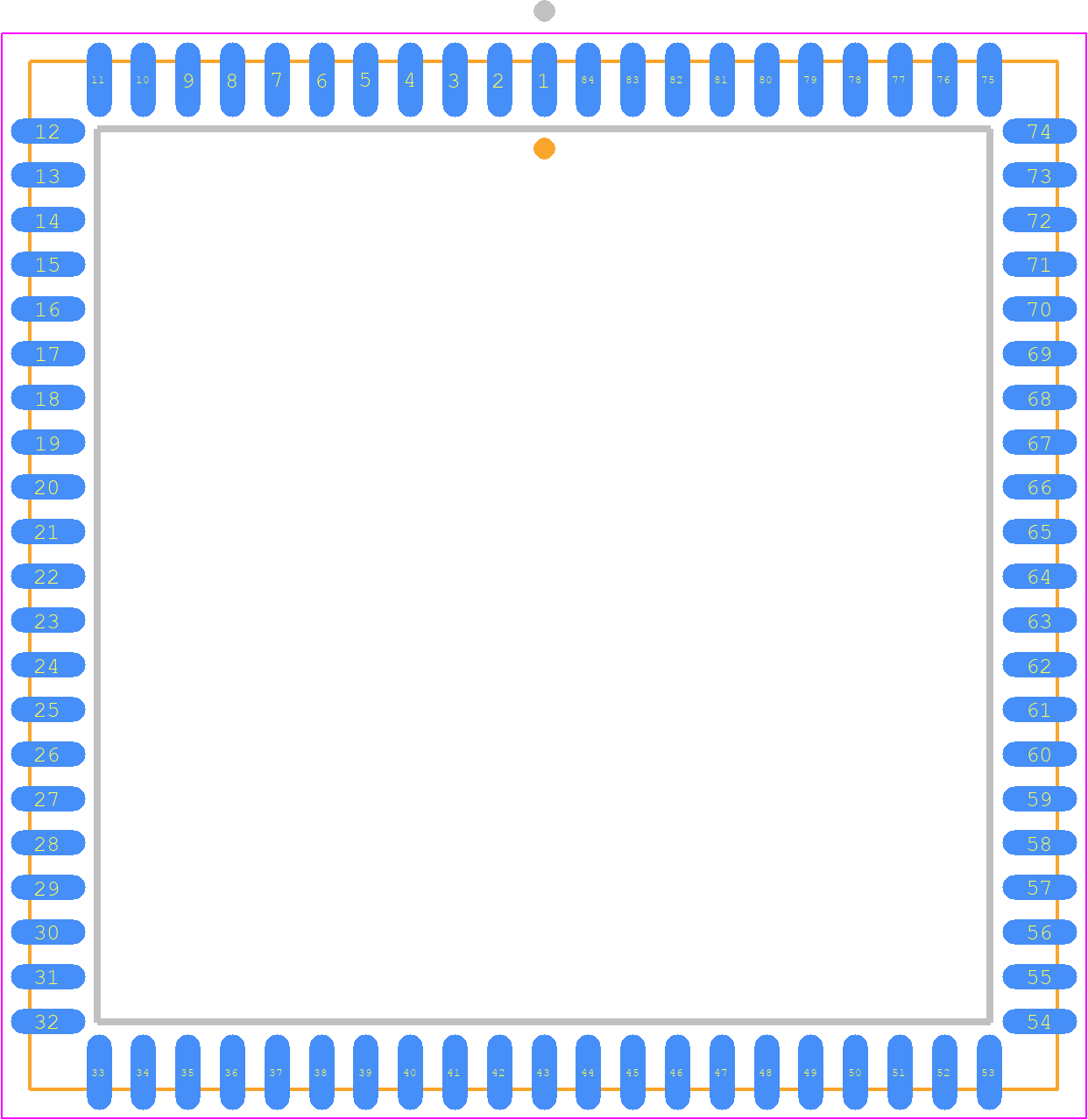

Use the download button to access the EPM7064SLC84-10N schematic symbol and PCB footprint.
