Intel provides a reference design guide for the EPM7064SLC84-5, which includes recommendations for PCB layout, thermal management, and power supply design. Additionally, Intel's Quartus II software provides a PCB synthesis tool that can help generate a layout that meets the device's requirements.
Intel recommends using a configuration device such as the EPCS16 or EPCS64 to store the configuration data for the EPM7064SLC84-5. The configuration data can be loaded into the device using the JTAG interface or the Passive Serial configuration mode. Intel also provides a configuration software tool, Quartus II, which can be used to generate the configuration file and program the device.
The EPM7064SLC84-5 requires a specific power sequencing and voltage regulation scheme to ensure reliable operation. Intel recommends using a power supply that can provide a stable 1.8V or 2.5V supply, depending on the device's operating mode. The power supply should also be able to handle the device's peak current requirements during configuration and operation.
To ensure signal integrity and minimize EMI, Intel recommends following good PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering techniques. Additionally, Intel provides guidelines for signal integrity and EMI mitigation in the device's datasheet and application notes.
The EPM7064SLC84-5 is rated for commercial temperature operation (0°C to 70°C) and can withstand a maximum junction temperature of 100°C. The device is also rated for a maximum storage temperature of 150°C. Intel recommends following the device's operating conditions and guidelines to ensure reliable operation and to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM7064SLC84-5 Overview

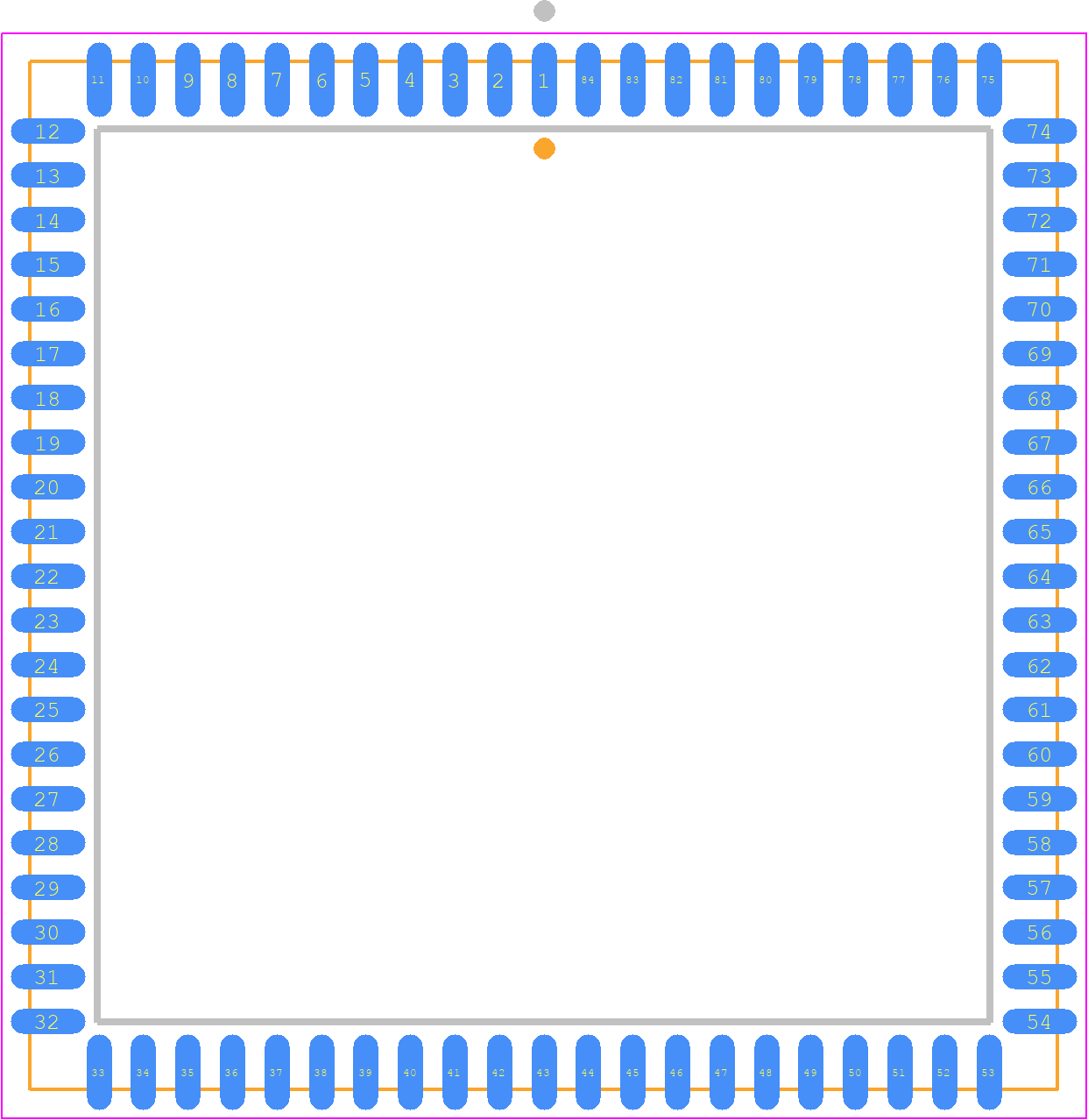

Use the download button to access the EPM7064SLC84-5 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM70,
or try a keyword search, such as Programmable Logic Devices
