The recommended operating temperature range for the EPM7064STC44-10N is 0°C to 85°C (commercial temperature range) or -40°C to 100°C (industrial temperature range), depending on the specific application and requirements.
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which can detect power-on and power-down sequences and generate a reset signal to the EPM7064STC44-10N. The voltage supervisor IC should be connected to the VCC pin of the EPM7064STC44-10N.
The maximum clock frequency supported by the EPM7064STC44-10N is 100 MHz. However, the actual clock frequency may be limited by the specific application and the clock signal quality.
To ensure reliable configuration of the EPM7064STC44-10N during power-up, it is recommended to use a configuration device, such as an EPCS16 or EPCS64, which can store the configuration data and provide a reliable configuration signal to the EPM7064STC44-10N.
For optimal performance and signal integrity, it is recommended to follow the PCB layout and routing guidelines provided in the Intel FPGA PCB Design Guidelines document, which includes guidelines for signal routing, power distribution, and decoupling.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
EPM7064STC44-10N Overview

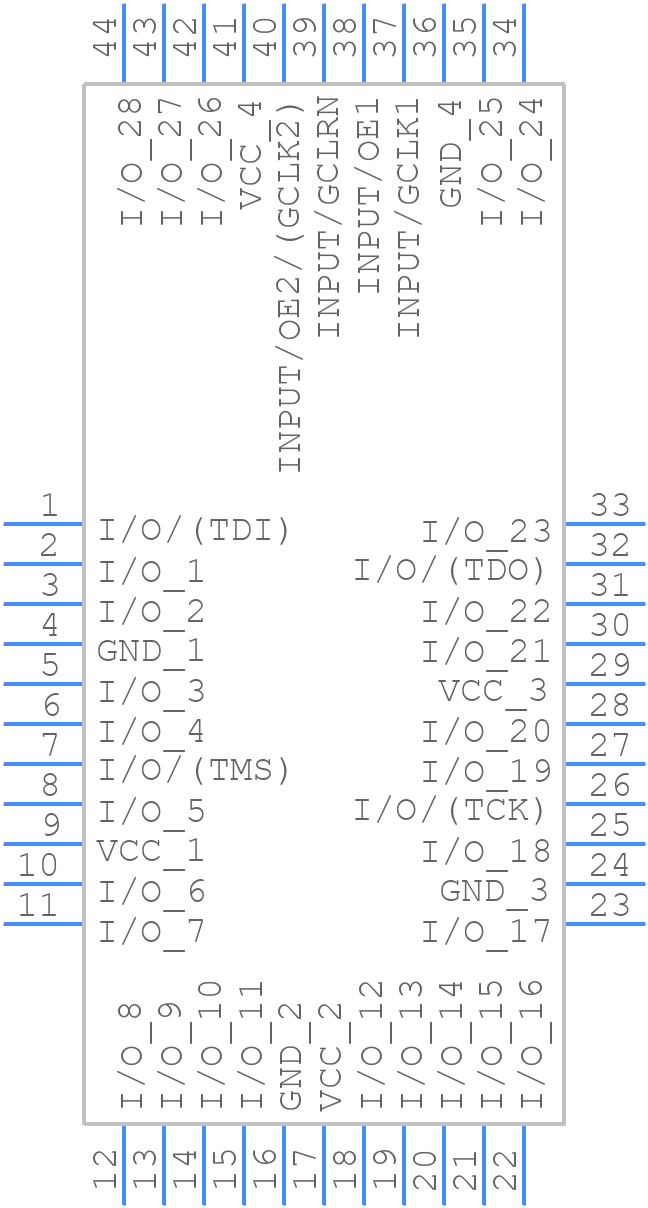

Use the download button to access the EPM7064STC44-10N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM70,
or try a keyword search, such as Programmable Logic Devices
