Intel provides a reference design guide for PCB layout and thermal management in the 'EPM7128ELC84-12 FPGA Device Family Pin-Out and Pin Description' document. It recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat.
Intel recommends using an external POR circuit with a voltage supervisor IC, such as the MAX809, to ensure a reliable power-on reset. The POR circuit should be designed to hold the FPGA in reset until the power supply voltage reaches a minimum of 1.71V.
The EPM7128ELC84-12 can be configured using passive serial configuration, active serial configuration, or JTAG configuration. Intel provides configuration software, such as the Quartus II software, to generate the configuration files and implement the desired configuration option.
To ensure signal integrity and reduce EMI, Intel recommends following best practices for PCB design, such as using differential signaling, minimizing signal trace length, and using shielding and grounding techniques. Additionally, Intel provides guidelines for signal integrity and EMI reduction in the 'EPM7128ELC84-12 FPGA Device Family Data Sheet'.
The EPM7128ELC84-12 is rated for commercial temperature range (0°C to 70°C) and industrial temperature range (-40°C to 100°C). To ensure reliability, Intel recommends following the recommended operating conditions, such as power supply voltage, clock frequency, and ambient temperature, and implementing proper thermal management and humidity control.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM7128ELC84-12 Overview

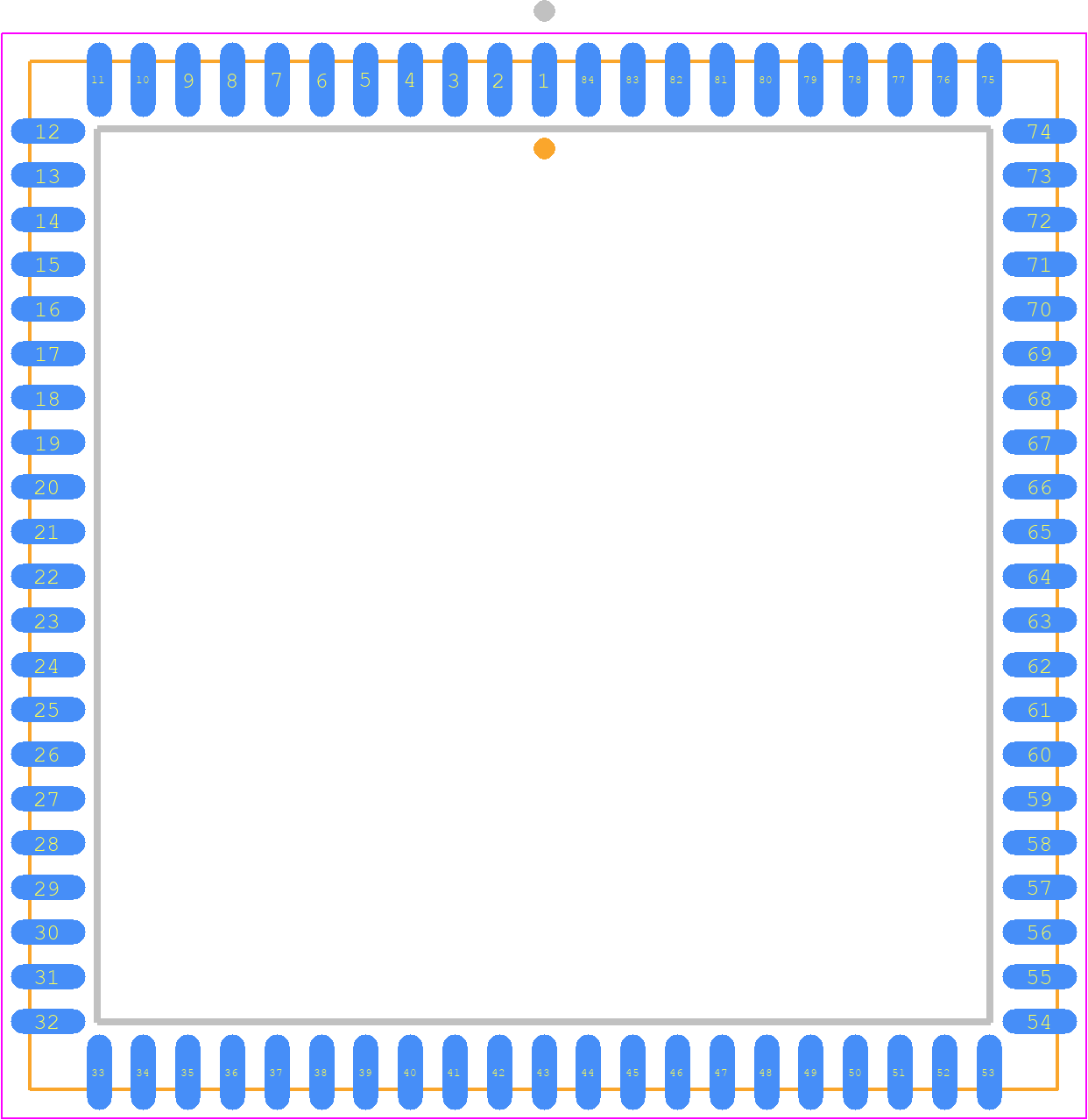

Use the download button to access the EPM7128ELC84-12 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM71,
or try a keyword search, such as Programmable Logic Devices
