EPM7128ELC84-20 footprint, schematic symbol and 3D model by Intel

Symbol

click to zoom

PCB Footprints

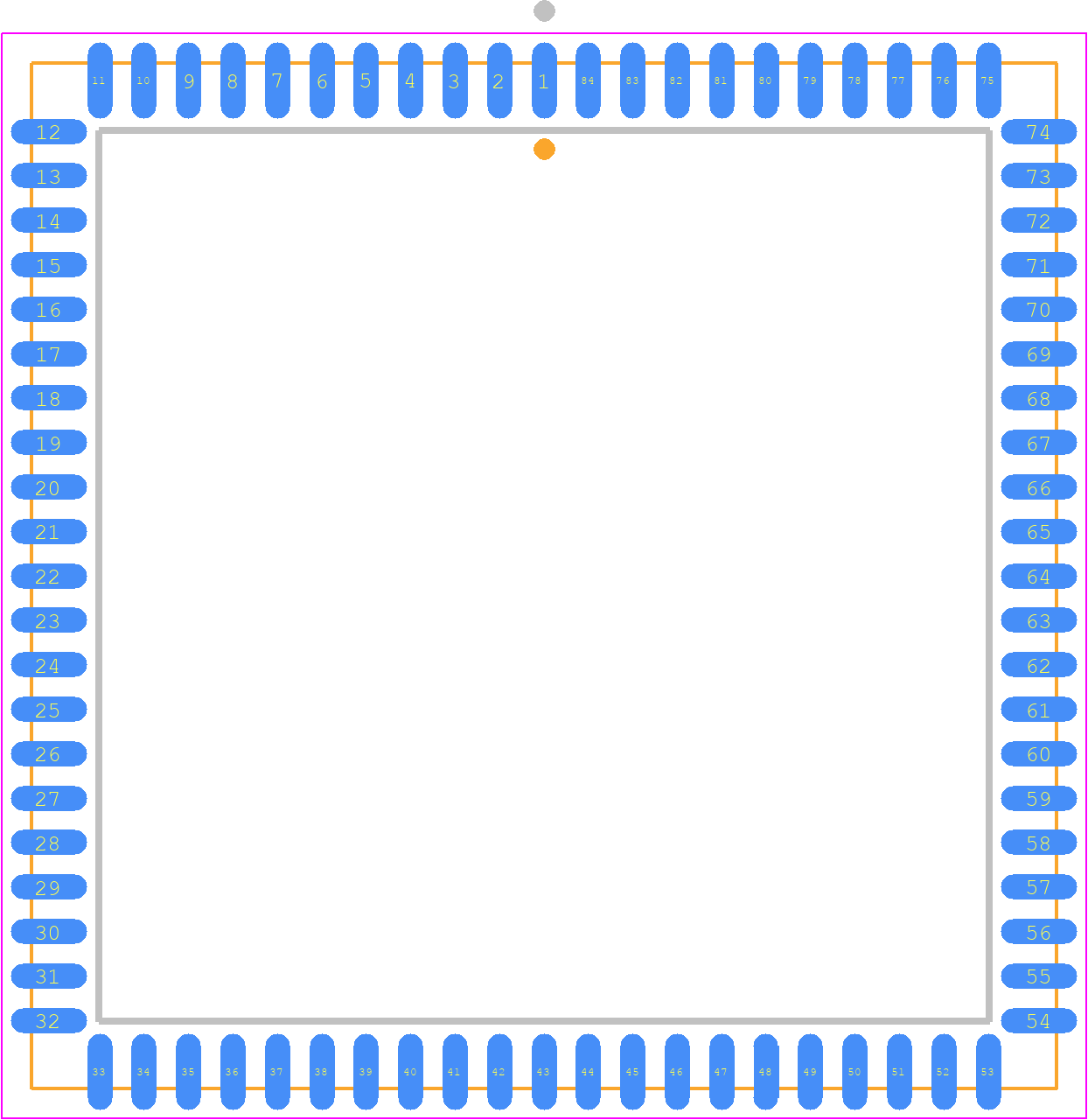

EPM7128ELC84-20 - Intel PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 84 PIN PLCC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EPM7128ELC84-20
Part Number EPM7128ELC84-20
Manufacturer Intel
Pin Count 84
Part Category Integrated Circuit
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - 84 PIN PLCC
Released Date Aug 10, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EPM7128ELC84-20 Details

Manufacturer Part Number:
EPM7128ELC84-20
Part Life Cycle Code:
Obsolete
Package Description:
PLASTIC, LCC-84
HTS Code:
8542.31.00.55
Manufacturer:
Intel Corporation
YTEOL:
0
Additional Feature:
128 MACROCELLS; CONFIGURABLE I/O OPERATION (3.3V OR 5V); 2 EXTERNAL CLOCKS; SHARED INPUT/CLOCK
Clock Frequency-Max:
83.3 MHz
In-System Programmable:
NO
JESD-30 Code:
S-PQCC-J84
JESD-609 Code:
e0
JTAG BST:
NO
Length:
29.3116 mm
Moisture Sensitivity Level:
3
Number of I/O Lines:
68
Number of Inputs:
68
Number of Macro Cells:
128
Number of Outputs:
68
Number of Terminals:
84
Operating Temperature-Max:
70 °C
Organization:
0 DEDICATED INPUTS, 68 I/O
Output Function:
MACROCELL
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Equivalence Code:
LDCC84,1.2SQ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Programmable Logic Type:
EE PLD
Propagation Delay:
20 ns
Qualification Status:
Not Qualified
Seated Height-Max:
5.08 mm
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
TIN LEAD
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Width:
29.3116 mm

EPM7128ELC84-20 Frequently Asked Questions (FAQs)

The recommended operating temperature range for EPM7128ELC84-20 is 0°C to 85°C (commercial temperature range) and -40°C to 100°C (industrial temperature range).
The EPM7128ELC84-20 requires a clock signal to operate. You can implement a clock signal using an external clock source, such as a crystal oscillator or a clock generator IC. The clock signal should be connected to the CLK pin (pin 15) of the device.
The maximum frequency of operation for the EPM7128ELC84-20 is 20 MHz. However, the actual operating frequency may be limited by the specific application and the clock signal quality.
The EPM7128ELC84-20 is a programmable device, and its configuration depends on the specific application. You can use Intel's Quartus II software to design and implement the desired logic function, and then program the device using a programming cable and the Quartus II software.
The power consumption of the EPM7128ELC84-20 depends on the specific application and operating conditions. However, the typical power consumption is around 100-200 mW, depending on the frequency of operation and the logic function implemented.
