Intel provides a reference design guide for PCB layout and thermal management in the 'EPM7128ELC84-7 FPGA Device Family Pin-Out and Pin Description' document. It recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat.
Intel recommends using synchronous clock domains, and provides guidelines for CDC in the 'EPM7128ELC84-7 FPGA Device Family Clocking and PLL User Guide'. It suggests using synchronizers, FIFOs, or handshake signals to transfer data between clock domains.
The commercial temperature range for EPM7128ELC84-7 is 0°C to 85°C, and the industrial temperature range is -40°C to 100°C. However, it's recommended to check the specific temperature range for the desired application and to consult with Intel support for custom temperature requirements.
The I/O banks and voltage levels can be configured using the Intel Quartus Prime software. The software provides a GUI-based interface to select the I/O standard, voltage level, and other settings for each bank. The 'EPM7128ELC84-7 FPGA Device Family I/O User Guide' provides more information on I/O bank configuration.
The power consumption of EPM7128ELC84-7 depends on the device utilization, clock frequency, and operating conditions. Intel provides a power estimator tool in the Quartus Prime software, which can estimate the power consumption based on the design. The 'EPM7128ELC84-7 FPGA Device Family Power Management User Guide' provides more information on power estimation and management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM7128ELC84-7 Overview

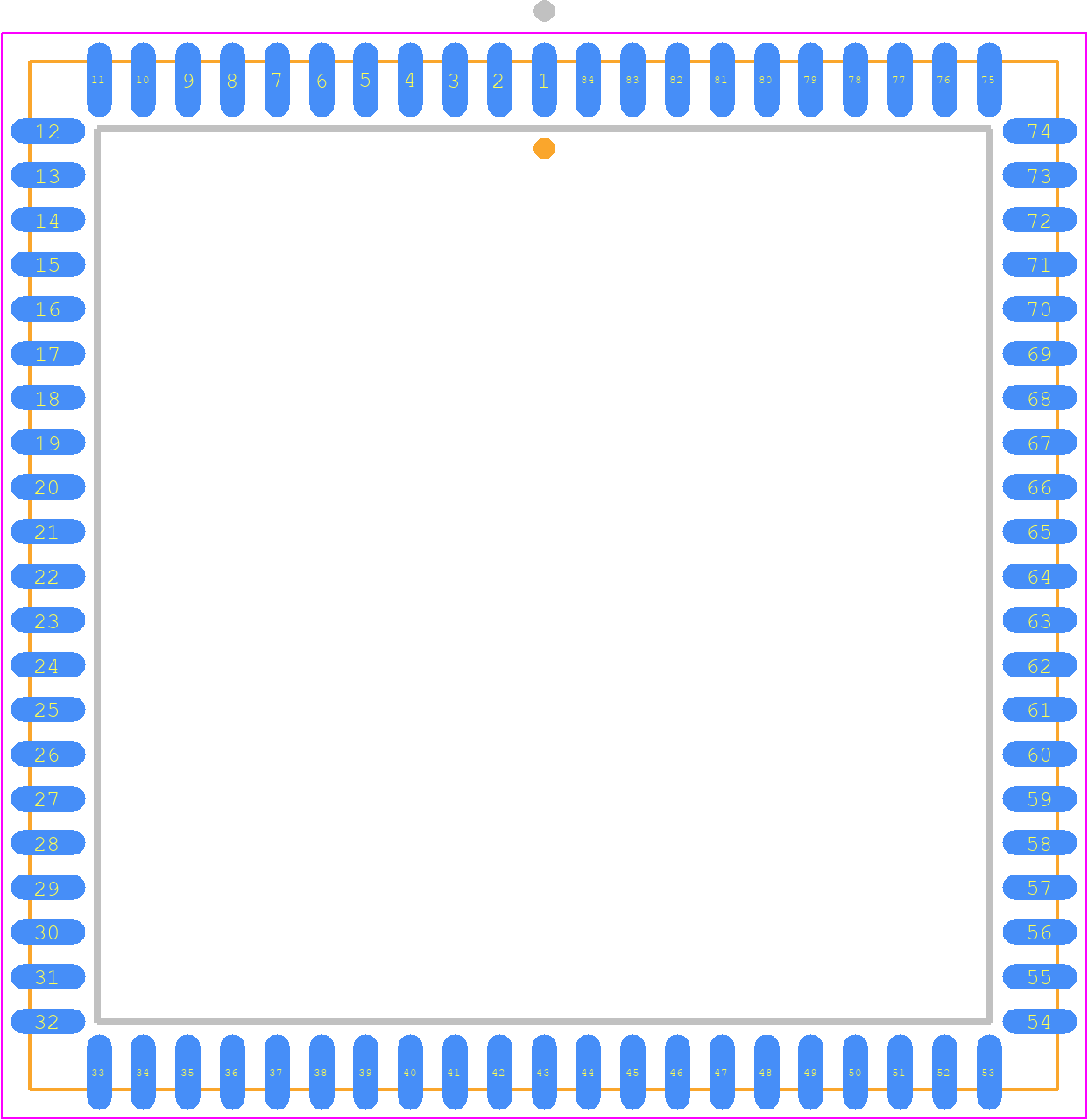

Use the download button to access the EPM7128ELC84-7 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM71,
or try a keyword search, such as Programmable Logic Devices
