The recommended operating temperature range for the EPM7128SLC84-10N is 0°C to 85°C (commercial temperature range) or -40°C to 100°C (industrial temperature range), depending on the specific application and requirements.
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which can detect power-on and power-down conditions and generate a reset signal to the EPM7128SLC84-10N. The voltage supervisor IC should be connected to the VCC pin of the EPM7128SLC84-10N.
The maximum clock frequency supported by the EPM7128SLC84-10N is 100 MHz. However, the actual clock frequency may be limited by the specific application and the clock signal quality.
To optimize the EPM7128SLC84-10N for low power consumption, use the following techniques: 1) use the lowest possible clock frequency, 2) minimize the number of active resources, 3) use the power-down mode when the device is not in use, and 4) optimize the design to reduce switching activity.
The maximum current rating for the EPM7128SLC84-10N is 100 mA per pin, with a total current limit of 500 mA for the entire device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM7128SLC84-10N Overview

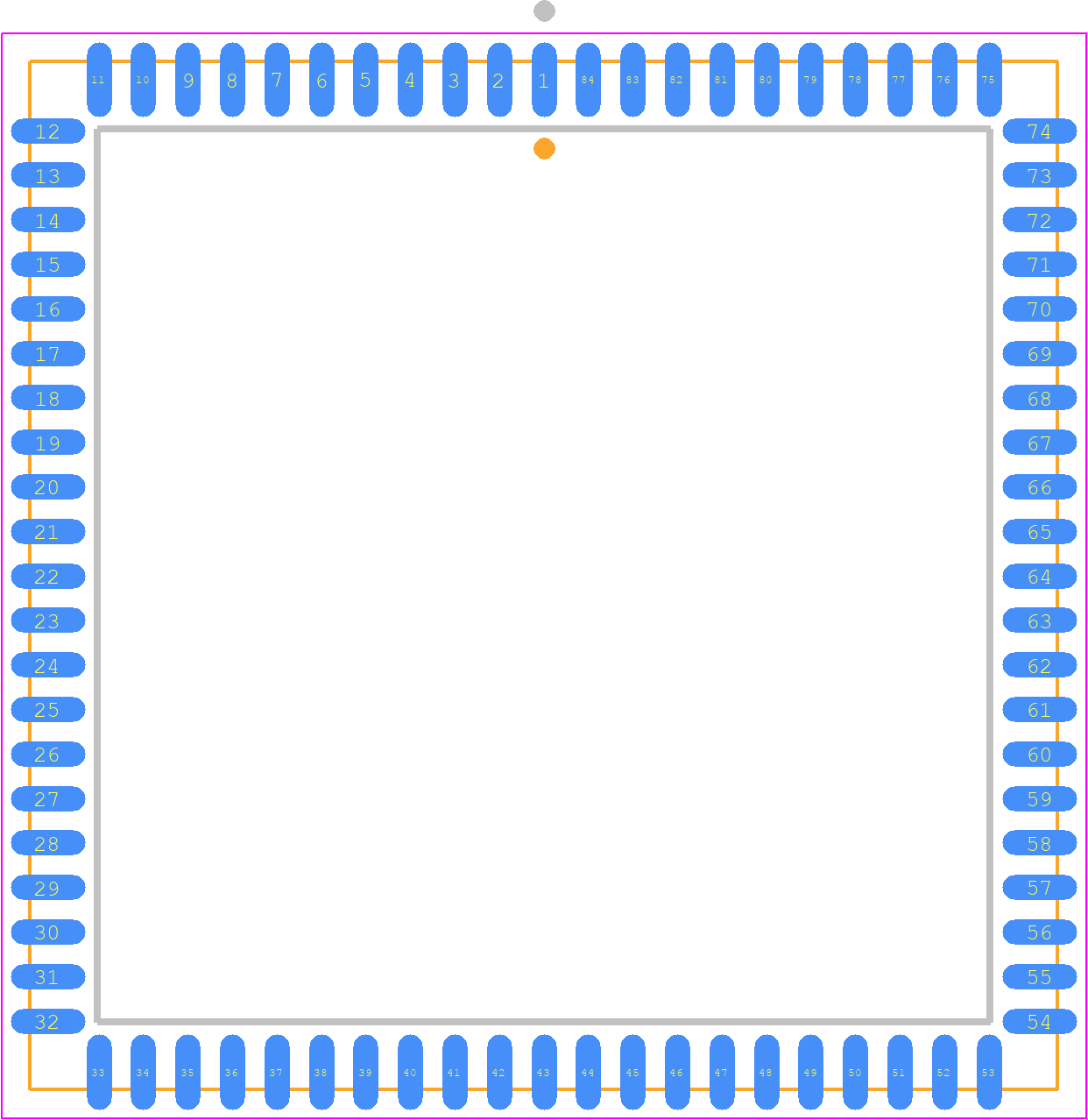

Use the download button to access the EPM7128SLC84-10N schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM71,
or try a keyword search, such as Programmable Logic Devices
