The recommended operating temperature range for the EPM7128SLI84-10 is 0°C to 85°C (commercial temperature range) or -40°C to 100°C (industrial temperature range), depending on the specific application and requirements.
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which can detect the power supply voltage and generate a reset signal to the EPM7128SLI84-10. The POR circuit should be designed to ensure that the FPGA is properly reset during power-up and power-down sequences.
The EPM7128SLI84-10 requires a JTAG interface for programming and debugging. The specific pin connections are: TCK (clock), TDI (data in), TDO (data out), TMS (mode select), and TRST (reset). These pins should be connected to a JTAG cable or a programming adapter, such as the Intel FPGA Download Cable.
To optimize power consumption, consider using the following techniques: 1) use the lowest possible voltage supply, 2) reduce the clock frequency, 3) use power-gating techniques, 4) minimize the number of active resources, and 5) use the Intel Quartus Prime Power Analyzer tool to identify and optimize power-hungry components.
The EPM7128SLI84-10 requires a clock input with a frequency range of 1 MHz to 200 MHz. The clock signal should have a duty cycle of 40% to 60% and a rise/fall time of less than 1 ns. Additionally, the clock signal should be free of noise and jitter to ensure reliable operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM7128SLI84-10 Overview

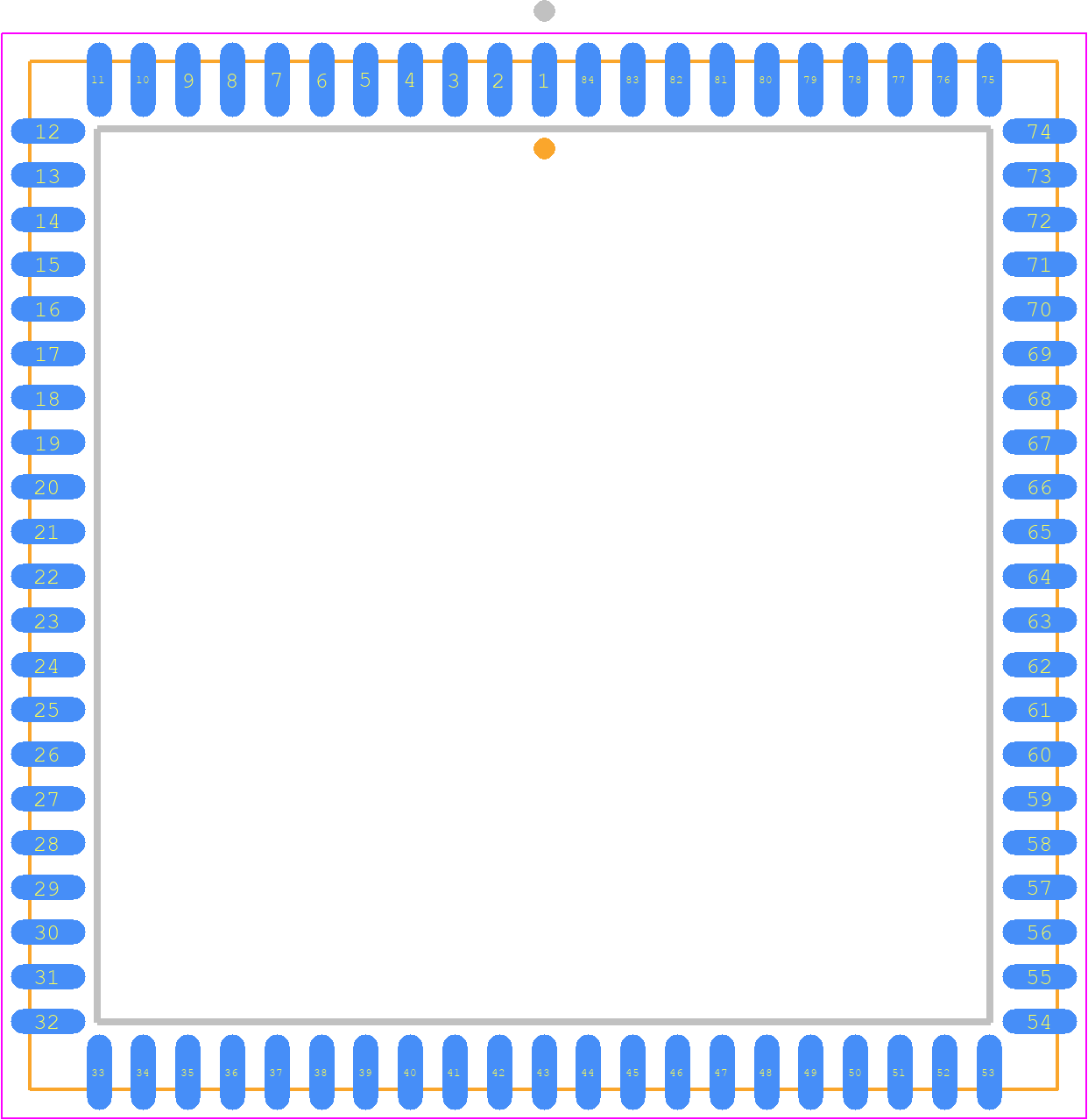

Use the download button to access the EPM7128SLI84-10 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM71,
or try a keyword search, such as Programmable Logic Devices
