EPM7128SQC100-10N footprint, schematic symbol and 3D model by Intel

Symbol

click to zoom

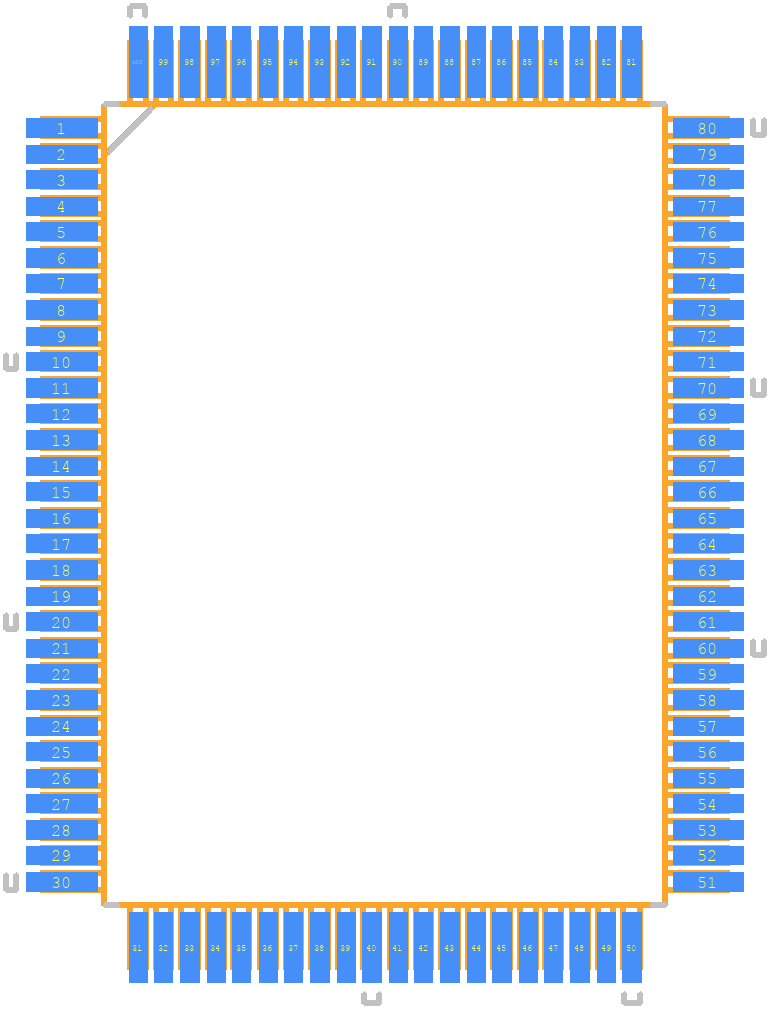

PCB Footprints

EPM7128SQC100-10N - Intel PCB footprint - Other - Other - QFP65P1720X2320X340-100N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EPM7128SQC100-10N
Part Number EPM7128SQC100-10N
Manufacturer Intel
Pin Count 100
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFP65P1720X2320X340-100N
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

EPM7128SQC100-10N Details

Manufacturer Part Number:
EPM7128SQC100-10N
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
PLASTIC, QFP-100
HTS Code:
8542.31.00.55
Manufacturer:
Intel Corporation
YTEOL:
0
Additional Feature:
CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
Clock Frequency-Max:
125 MHz
In-System Programmable:
YES
JESD-30 Code:
R-PQFP-G100
JESD-609 Code:
e3
JTAG BST:
YES
Length:
20 mm
Moisture Sensitivity Level:
3
Number of I/O Lines:
84
Number of Inputs:
84
Number of Macro Cells:
128
Number of Outputs:
84
Number of Terminals:
100
Operating Temperature-Max:
70 °C
Organization:
0 DEDICATED INPUTS, 84 I/O
Output Function:
MACROCELL
Package Body Material:
PLASTIC/EPOXY
Package Code:
QFP
Package Equivalence Code:
QFP100,.7X.9
Package Shape:
RECTANGULAR
Package Style:
FLATPACK
Programmable Logic Type:
EE PLD
Propagation Delay:
10 ns
Qualification Status:
Not Qualified
Seated Height-Max:
3.65 mm
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
QUAD
Width:
14 mm

EPM7128SQC100-10N Frequently Asked Questions (FAQs)

The recommended operating temperature range for the EPM7128SQC100-10N is 0°C to 85°C (commercial temperature range) or -40°C to 100°C (industrial temperature range), depending on the specific application and requirements.
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which can detect the power supply voltage and generate a reset signal to the EPM7128SQC100-10N when the voltage is below a certain threshold.
The maximum clock frequency supported by the EPM7128SQC100-10N is 100 MHz, but it can be overclocked to 133 MHz with reduced voltage and temperature derating.
To optimize pin assignment, follow the guidelines in the Intel Quartus II software, which provides a pin planner tool to help minimize signal integrity issues by optimizing pin placement and routing.
The recommended decoupling capacitor values are 0.01 μF to 0.1 μF, and they should be placed as close as possible to the power pins of the EPM7128SQC100-10N, with a maximum distance of 1 inch (2.54 cm).
