- Part Number EPM7128SQC160-15
- Manufacturer Intel
- Pin Count 160
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - EPM7128SQC160-15
- Released Date Jun 4, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EPM7128SQC160-15 Details
-
Manufacturer Part Number:
EPM7128SQC160-15
-
Part Life Cycle Code:
Obsolete
-
Package Description:
PLASTIC, QFP-160
-
HTS Code:
8542.31.00.55
-
Manufacturer:
Intel Corporation
-
YTEOL:
0
-
Additional Feature:
CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
-
Clock Frequency-Max:
100 MHz
-
In-System Programmable:
YES
-
JESD-30 Code:
S-PQFP-G160
-
JESD-609 Code:
e0
EPM7128SQC160-15 Frequently Asked Questions (FAQs)
-
Intel provides a reference design guide for the EPM7128SQC160-15, which includes recommendations for PCB layout, thermal management, and power delivery. It's essential to follow these guidelines to ensure optimal performance and reliability.
-
Intel recommends using the Quartus II software to configure and program the EPM7128SQC160-15. The software provides a user-friendly interface for designing, compiling, and programming the FPGA. Additionally, Intel offers various configuration and programming options, such as JTAG, AS, and PS mode, which can be selected based on the specific application requirements.
-
The power consumption of the EPM7128SQC160-15 depends on the specific application, operating frequency, and configuration. Intel provides power consumption estimates in the datasheet, but actual power consumption may vary. It's essential to perform power analysis and thermal simulations to ensure that the device operates within the recommended temperature range (0°C to 85°C) and power consumption limits.
-
To ensure signal integrity and minimize EMI, it's essential to follow Intel's guidelines for signal routing, termination, and shielding. Additionally, using differential signaling, impedance matching, and EMI filters can help reduce EMI. Intel also provides simulation tools and models to help designers analyze and optimize signal integrity and EMI performance.
-
The EPM7128SQC160-15 has built-in features to ensure reliability and fault tolerance, such as error detection and correction, single-event upset (SEU) mitigation, and built-in self-test (BIST). Additionally, Intel provides guidelines for designing redundant systems and implementing fault-tolerant architectures to ensure high reliability and availability.
Trust Checks
Community Provided
System Verified
Community Approved
EPM7128SQC160-15 Overview

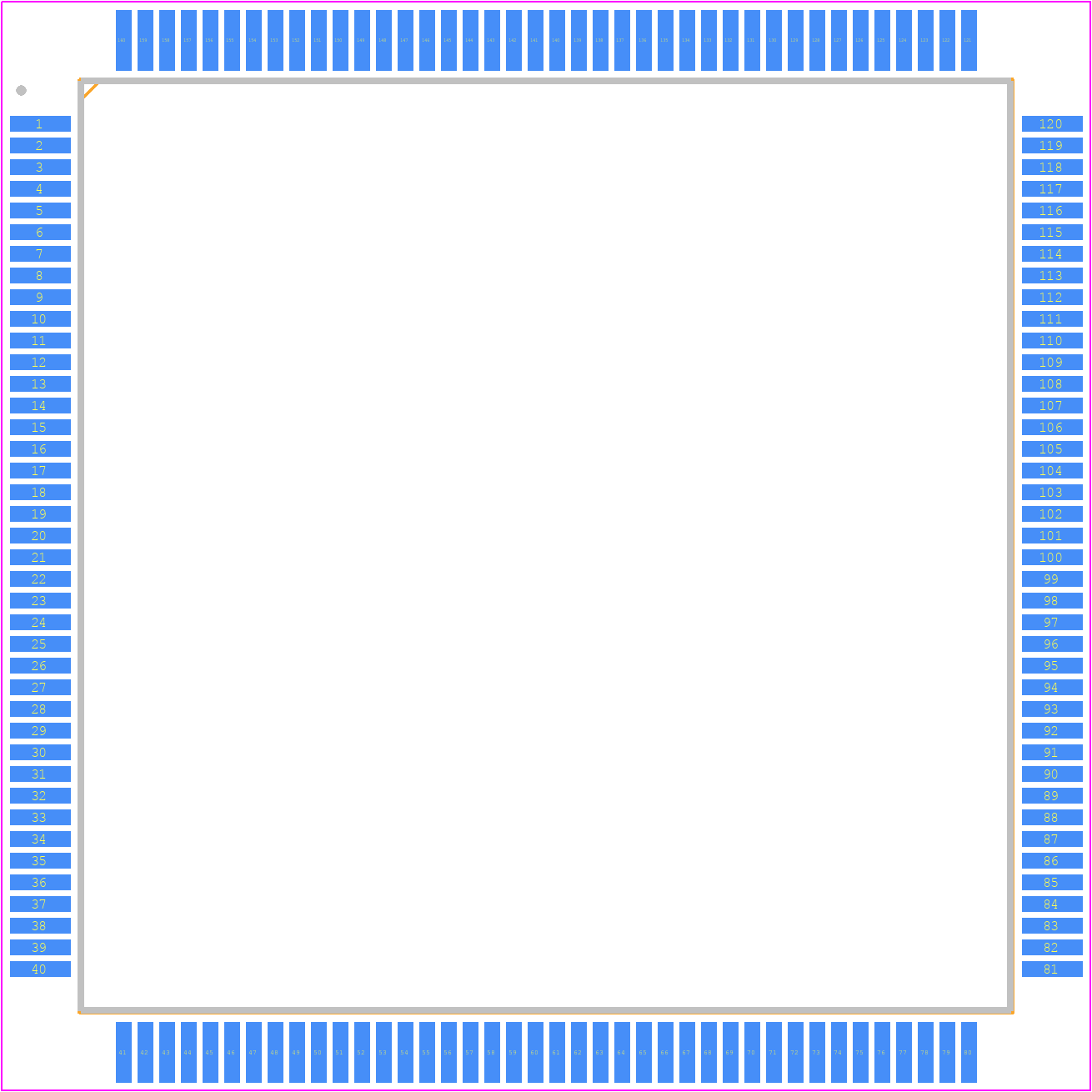

Use the download button to access the EPM7128SQC160-15 schematic symbol, PCB footprint, and 3D model.
