EPM7128SQC160-6 - Intel

EPM7128SQC160-6 Details

• Manufacturer Part Number:

  EPM7128SQC160-6

• Part Life Cycle Code:

  Obsolete

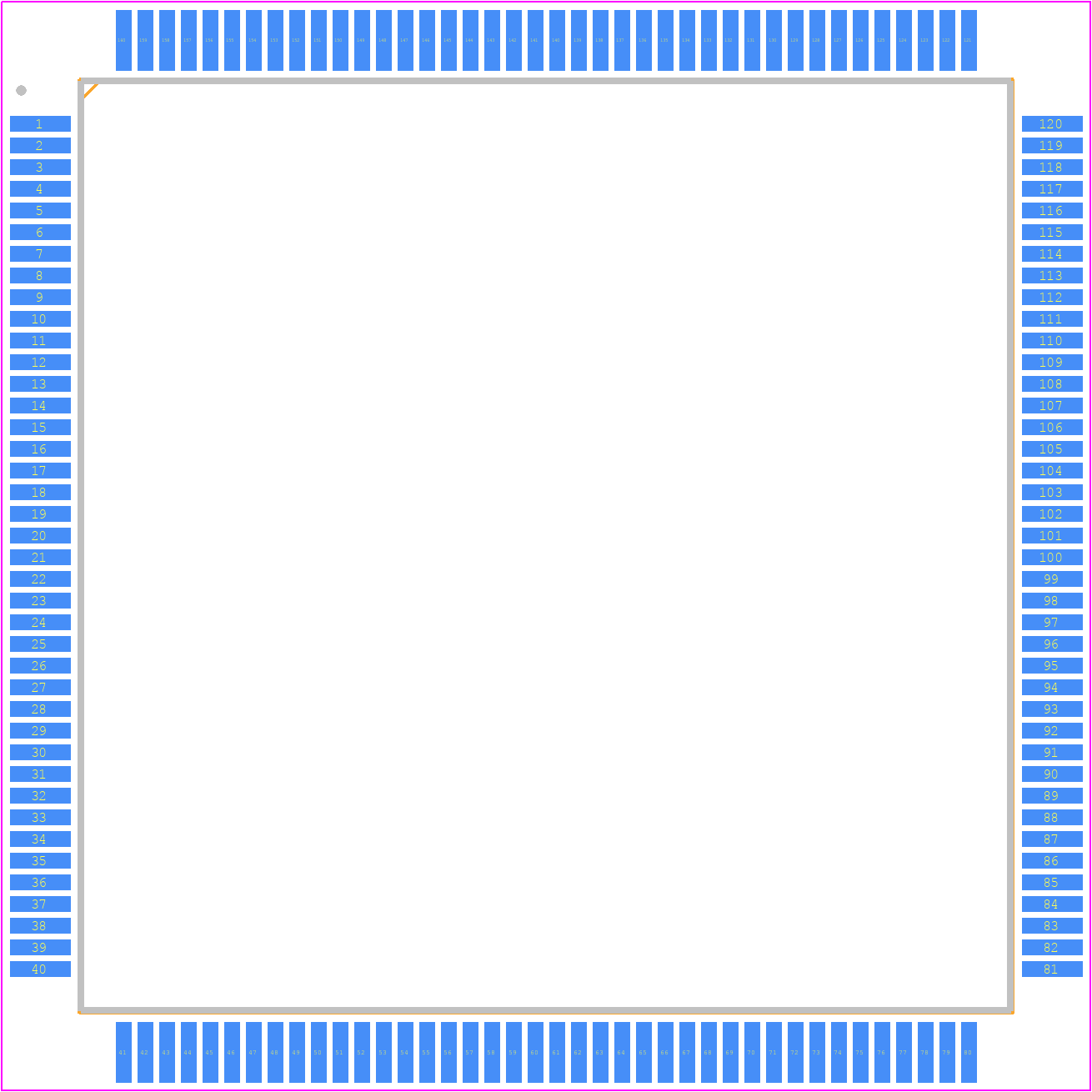

• Package Description:

  PLASTIC, QFP-160

• HTS Code:

  8542.31.00.55

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Intel Corporation

• YTEOL:

  0

• Additional Feature:

  CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V

• Clock Frequency-Max:

  166.7 MHz

• In-System Programmable:

  YES

• JESD-30 Code:

  S-PQFP-G160

• JESD-609 Code:

  e0

• JTAG BST:

  YES

• Length:

  28 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  100

• Number of Inputs:

  100

• Number of Macro Cells:

  128

• Number of Outputs:

  100

• Number of Terminals:

  160

• Operating Temperature-Max:

  70 °C

• Organization:

  0 DEDICATED INPUTS, 100 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP160,1.2SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Programmable Logic Type:

  EE PLD

• Propagation Delay:

  6 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.07 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  28 mm
