The recommended operating temperature range for EPM7128SQI100-10N is 0°C to 85°C (commercial temperature range) and -40°C to 100°C (industrial temperature range).
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the MAX809, which can detect power-on and power-down sequences and generate a reset signal to the FPGA.
The EPM7128SQI100-10N can be configured using the Quartus II software, which provides various configuration options such as JTAG, AS, and PS mode. The configuration file can be generated using the Quartus II software and then loaded into the FPGA using a programming cable.
To ensure signal integrity and reduce EMI, it is recommended to follow good PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering techniques. Additionally, the EPM7128SQI100-10N has built-in features such as programmable output slew rates and drive strengths to help reduce EMI.
The EPM7128SQI100-10N has a maximum clock frequency of 250 MHz and a maximum data transfer rate of 250 Mbps. However, the actual clock frequency and data transfer rate may be limited by the specific application and system design.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
EPM7128SQI100-10N Overview

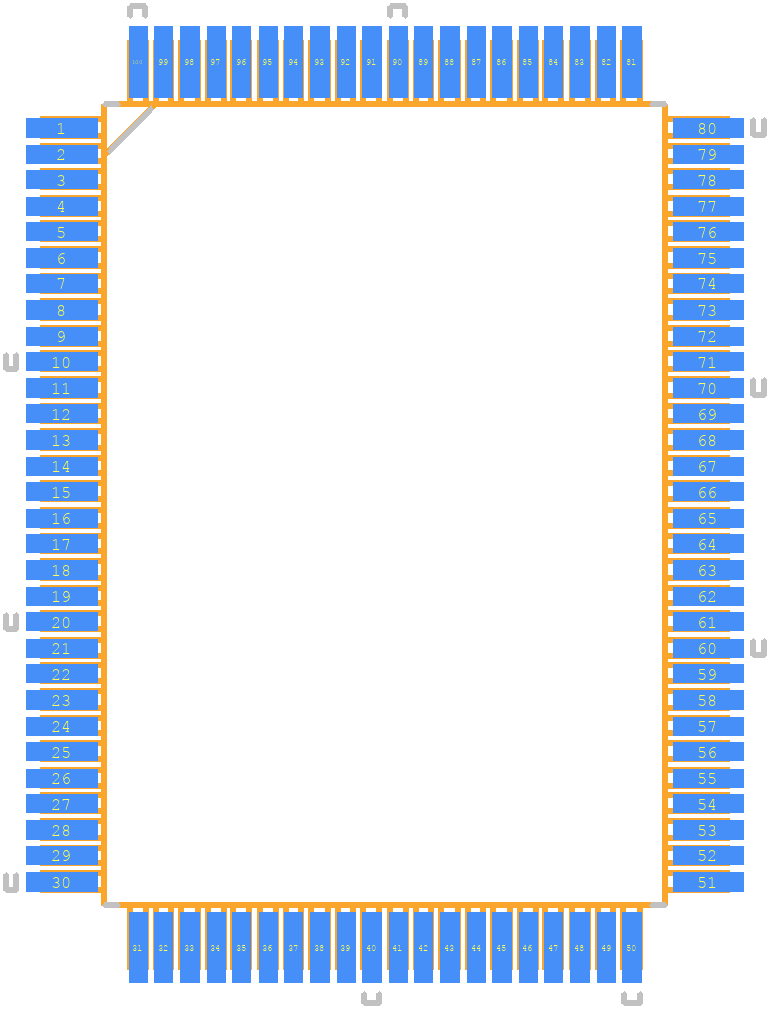

Use the download button to access the EPM7128SQI100-10N schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM71,
or try a keyword search, such as Programmable Logic Devices
