Intel provides a reference design guide for the EPM7160SQC160-7, which includes recommendations for PCB layout, thermal management, and power delivery. It's essential to follow these guidelines to ensure optimal performance and reliability.
Intel recommends using a clock tree architecture with a central clock source and distributing clock signals to each component. Termination should be done using a series resistor and capacitor (R-C) network to minimize signal reflections and ensure signal integrity.
The EPM7160SQC160-7 requires a specific power-up and power-down sequencing to ensure proper operation. Intel recommends powering up the core voltage (VCC) before the input/output voltage (VCCIO) and powering down the VCCIO before the VCC. A power sequencing controller or a dedicated power management IC can be used to implement this sequencing.
The EPM7160SQC160-7 supports JTAG boundary scan and debugging through the IEEE 1149.1 standard. Intel provides a JTAG interface description and boundary scan description language (BSDL) files for the device. Engineers can use third-party tools, such as Altera's Quartus II or Intel's FPGA development software, to implement JTAG boundary scan and debugging.
The EPM7160SQC160-7 is designed to meet certain radiation and EMI requirements, but engineers should still take precautions to ensure the device operates reliably in their specific application. This includes following Intel's guidelines for radiation-hardened design, using EMI shielding and filtering, and implementing proper PCB layout and grounding techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EPM7160SQC160-7 Overview

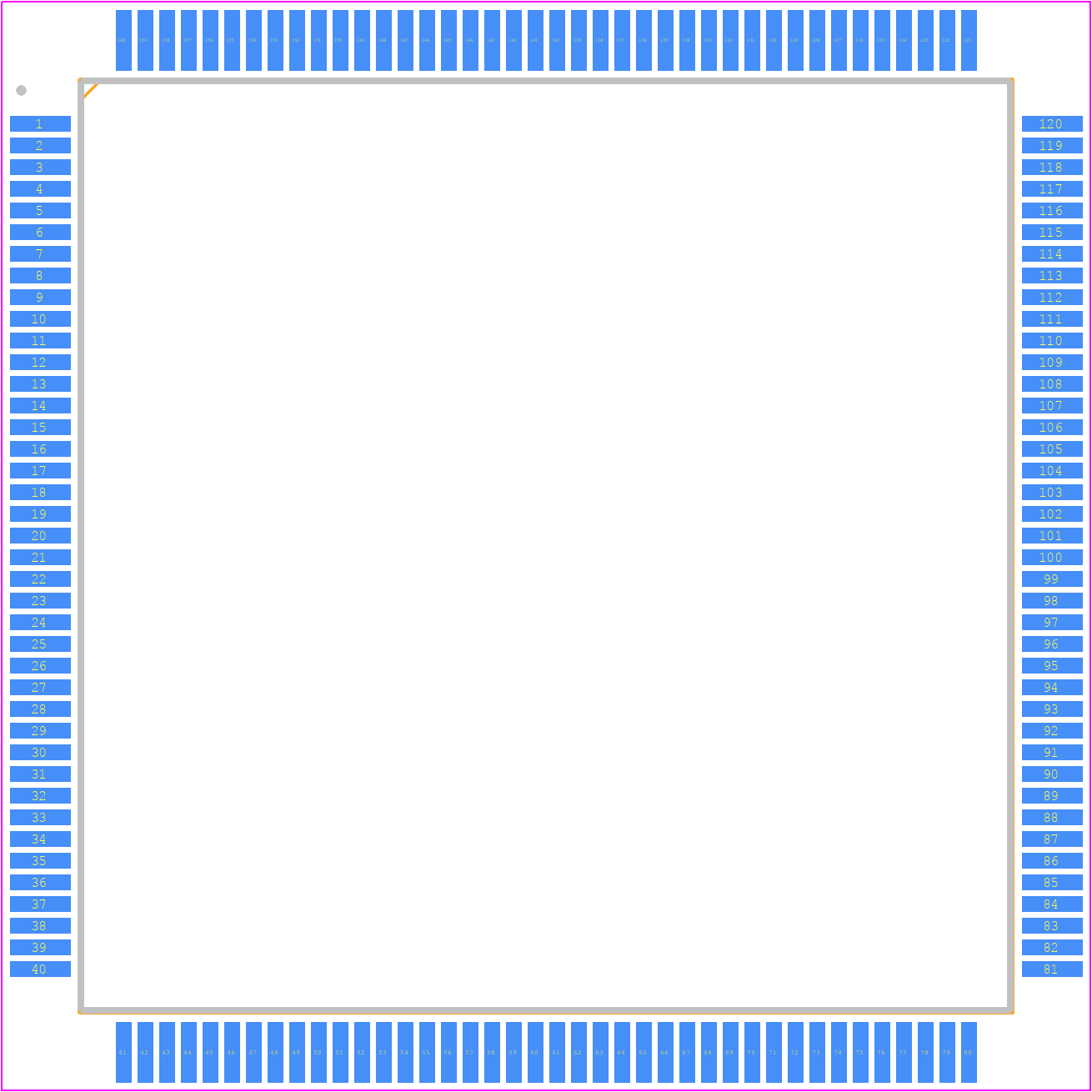

Use the download button to access the EPM7160SQC160-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EPM71,
or try a keyword search, such as Programmable Logic Devices
