Part Image

EQY-4-63+ - Mini-Circuits

Description: Equalisers 4.2 dB SMT Fixed Slope Equalizer, DC - 6000 MHz

Download EQY-4-63+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

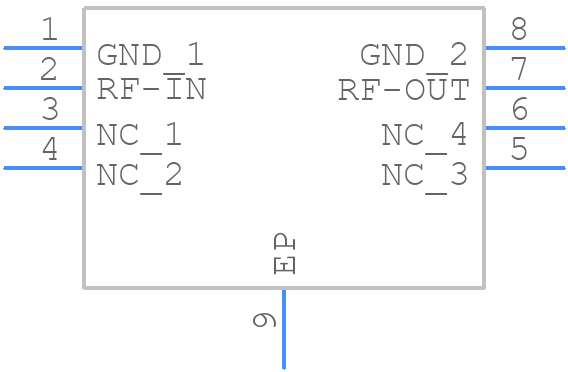

EQY-4-63+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
EQY-4-63+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1631-1
click to zoom
3D Models
EQY-4-63+ - Mini-Circuits - 3D model - Small Outline No-lead - MC1631-1
click to zoom

EQY-4-63+ Details

  • Manufacturer Part Number:

    EQY-4-63+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-02-04

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08,20

  • RF/Microwave Device Type:

    GAIN EQUALIZER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.32

EQY-4-63+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground connection to the EQY-4-63+ package. A low-impedance path to ground is crucial for optimal performance.
  • The EQY-4-63+ requires a bias voltage of 5V ± 0.5V and a bias current of 100mA ± 10mA. Ensure the bias circuitry is designed to provide a stable and low-noise supply to achieve optimal linearity.
  • The EQY-4-63+ is rated for operation from -40°C to +85°C. However, it's recommended to derate the device's performance and power handling at higher temperatures to ensure reliability and longevity.
  • While the EQY-4-63+ is designed for 50Ω systems, it can be used in non-50Ω systems with proper impedance matching. However, this may require additional circuitry and may affect the device's performance and power handling.
  • The typical settling time for the EQY-4-63+ is around 10ns to 20ns, depending on the specific application and operating conditions. This can affect the device's performance in high-speed and high-frequency applications.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

EQY-4-63+ Overview

Use the download button to access the EQY-4-63+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EQY-4, or try a keyword search, such as Other RF/Microwave Devices

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
