- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for EQY-5-63+
- Part Number EQY-5-63+
- Manufacturer Mini-Circuits
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - EQY-5-63+
- Released Date May 6, 2023
- Last Modified Date May 7, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
EQY-5-63+ Details
-
Manufacturer Part Number:
EQY-5-63+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Date Of Intro:
2019-02-04
-
Manufacturer:
Mini-Circuits
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Mounting Feature:
SURFACE MOUNT
-
Number of Terminals:
8
-
Operating Frequency-Max:
6000 MHz
EQY-5-63+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
-
The EQY-5-63+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors to match the impedance of your system. You can use online impedance matching calculators or consult with an RF engineer for assistance.
-
The EQY-5-63+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling to ensure reliability and prevent overheating. Consult with Mini-Circuits or an RF engineer for specific power handling guidelines.
-
Yes, the EQY-5-63+ is designed for high-reliability applications and is suitable for use in space-constrained environments. However, it's essential to follow proper PCB design and assembly guidelines to ensure optimal performance and reliability.
-
To troubleshoot issues with the EQY-5-63+, start by checking the PCB layout and assembly for any defects or errors. Verify that the component is properly soldered and that there are no signs of overheating or physical damage. Use a signal generator and spectrum analyzer to test the component's performance and identify any issues.
Trust Checks
Community Provided
System Verified
Community Approved
EQY-5-63+ Overview

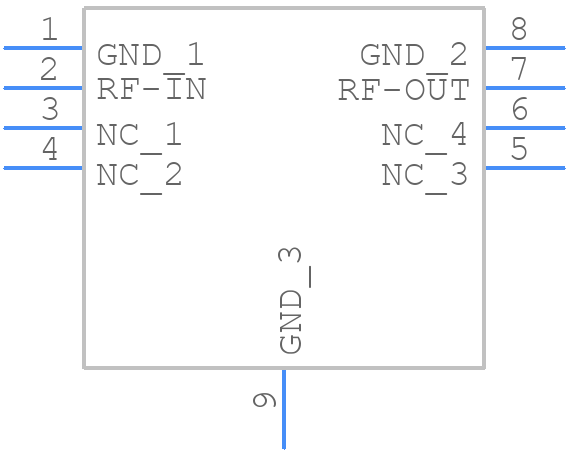

Use the download button to access the EQY-5-63+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EQY-5,
or try a keyword search, such as Other RF/Microwave Devices
