ER8-10P-0.8SV-5H - Hirose

Description: Board to Board & Mezzanine Connectors HighSpeed Trans HDR 10P STRGHT 0.76um 500 mA,100 V,-55C +85C

Download ER8-10P-0.8SV-5H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

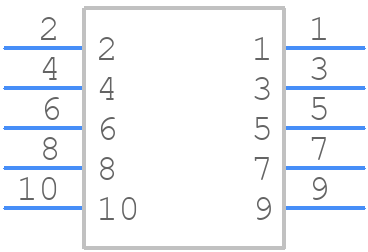

ER8-10P-0.8SV-5H - Hirose - PCB symbol
click to zoom
PCB Footprints

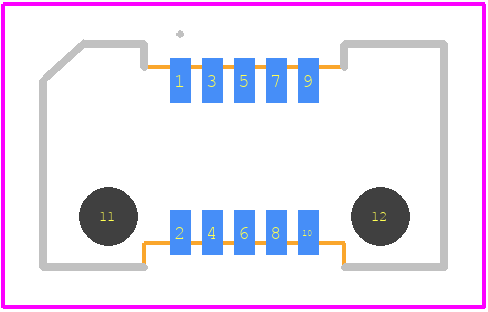

ER8-10P-0.8SV-5H - Hirose PCB footprint - Other - Other - ER8-10P-0.8SV-5H-3
click to zoom
3D Models
ER8-10P-0.8SV-5H - Hirose - 3D model - Other - ER8-10P-0.8SV-5H-3
click to zoom

ER8-10P-0.8SV-5H Details

  • Manufacturer Part Number:

    ER8-10P-0.8SV-5H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    BOARD STACKING CONNECTOR

ER8-10P-0.8SV-5H Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.0 N·m (0.37 lbf·in to 0.74 lbf·in).
  • Yes, the ER8-10P-0.8SV-5H connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • Yes, the ER8-10P-0.8SV-5H connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance of 90% RH at 40°C.
  • The mating cycle life of the ER8-10P-0.8SV-5H connector is 500 cycles minimum.
  • Yes, the ER8-10P-0.8SV-5H connector is RoHS and REACH compliant, meeting the requirements of EU directives 2011/65/EU and (EC) No 1907/2006.
