The recommended torque for the screw terminals is 0.5 N·m to 1.0 N·m (0.36 lbf·in to 0.72 lbf·in). It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.
Yes, the ER8-40P-0.8SV-5H connector is designed to withstand vibrations up to 10 G (10 m/s²) in the frequency range of 10 Hz to 2000 Hz, making it suitable for use in high-vibration applications.
The ER8-40P-0.8SV-5H connector has a rating of IP67, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
The ER8-40P-0.8SV-5H connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
While the ER8-40P-0.8SV-5H connector is designed for use with 0.8 mm² (18 AWG) wire, it can accommodate wire sizes from 0.5 mm² to 1.0 mm² (20 AWG to 16 AWG). However, it's essential to ensure the wire size is compatible with the connector's current rating and application requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ER8-40P-0.8SV-5H Overview

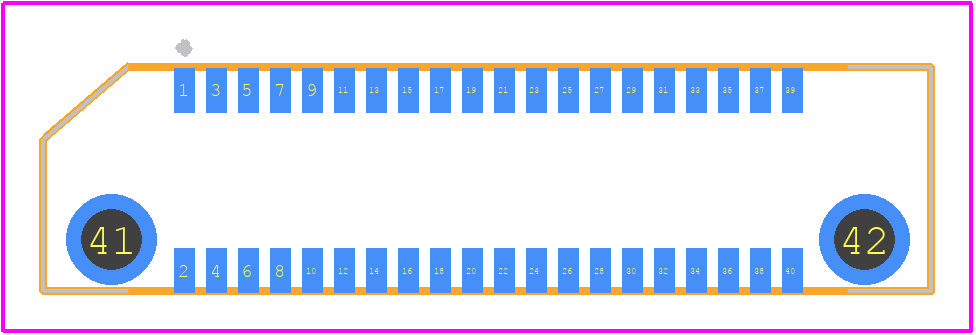

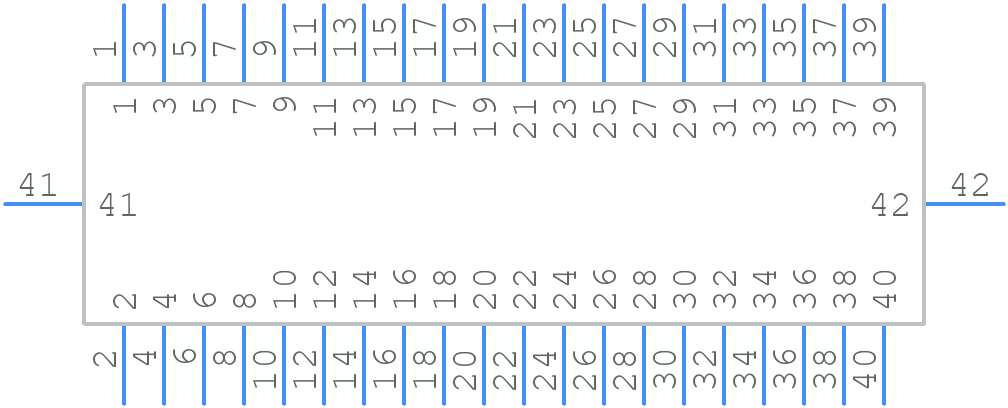

Use the download button to access the ER8-40P-0.8SV-5H schematic symbol, PCB footprint, and 3D model.
