- Part Number ERA-1+
- Manufacturer Mini-Circuits
- Pin Count 4
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - ERA-1+-5
- Released Date Jul 1, 2023
- Last Modified Date Jul 1, 2023 10:24 AM UTC
- Pinout / Pin List Click Here (Member Only)
ERA-1+ Details
-
Manufacturer Part Number:
ERA-1+
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.83
-
Additional Feature:
USABLE TO 10 GHZ
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
10.3 dB
ERA-1+ Frequently Asked Questions (FAQs)
-
A good PCB layout and grounding scheme are crucial for optimal performance. Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common ground point for the amplifier's ground pins and to avoid running digital lines near the amplifier's signal paths.
-
The ERA-1+ is a 50-ohm amplifier, so it's recommended to use 50-ohm input and output impedance matching networks. The specific network topology and component values will depend on the application's frequency range and impedance requirements. Mini-Circuits provides a range of application notes and design tools to help with impedance matching.
-
The ERA-1+ is rated for operation from -40°C to +85°C. However, it's recommended to derate the amplifier's power dissipation at higher temperatures to ensure reliable operation. Mini-Circuits provides a thermal derating curve in the datasheet to help with this calculation.
-
Yes, the ERA-1+ can be used in a push-pull or differential configuration to improve performance and reduce even-order distortion. However, this will require additional external components and careful layout and matching to ensure optimal performance.
-
Common issues such as oscillation or instability can often be traced back to poor PCB layout, inadequate decoupling, or incorrect impedance matching. Mini-Circuits provides a range of application notes and troubleshooting guides to help identify and resolve these issues.
Trust Checks
Community Provided
System Verified
Community Approved
ERA-1+ Overview

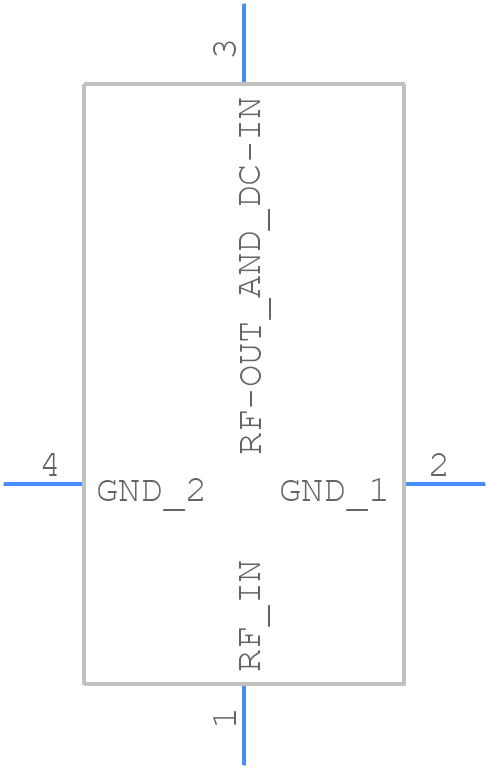

Use the download button to access the ERA-1+ schematic symbol and PCB footprint.
