ERA-2SM+ - Mini-Circuits

Description: SMT MMIC, Linear, Gain Block, HBT Amplifier, DC to 6000 MHz, 50Ω, Micro-X Style Package

Download ERA-2SM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

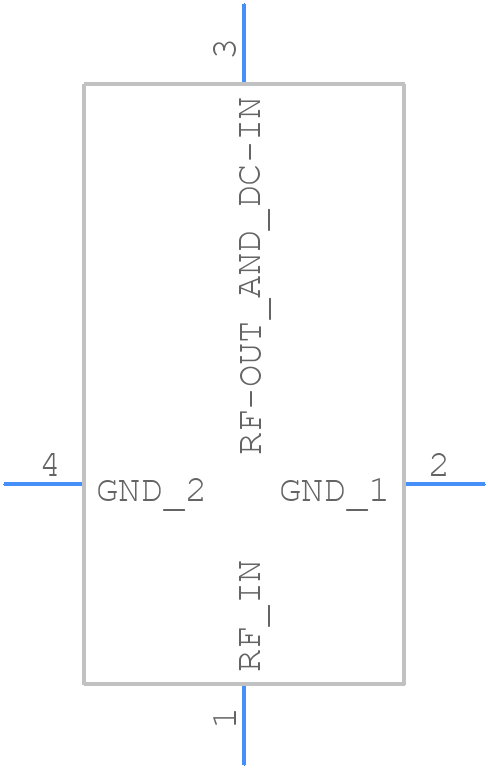

Symbol
ERA-2SM+ - Mini-Circuits - PCB symbol
click to zoom

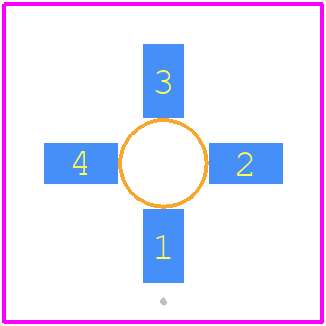

PCB Footprints
ERA-2SM+ - Mini-Circuits PCB footprint - Other - Other - WW107_2024-5
click to zoom
3D Models
ERA-2SM+ - Mini-Circuits - 3D model - Other - WW107_2024-5
click to zoom

ERA-2SM+ Details

  • Manufacturer Part Number:

    ERA-2SM+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.83

  • Additional Feature:

    USABLE TO 10 GHZ

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    11.9 dB

  • Input Power-Max (CW):

    15 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -45 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SL,4GW-LD,.085CIR

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    40 mA

  • Surface Mount:

    YES

  • VSWR-Max:

    1.6

ERA-2SM+ Frequently Asked Questions (FAQs)

  • The ERA-2SM+ can handle up to +15 dBm of input power without damage, but for optimal performance, it's recommended to keep the input power below +10 dBm.
  • The ERA-2SM+ is designed to work with 50-ohm systems, but it can still operate with non-50 ohm inputs. However, the gain and impedance matching may be affected, and the amplifier's performance may degrade.
  • Yes, the ERA-2SM+ can be used as a receiver amplifier, but it's essential to ensure that the input signal is properly filtered and attenuated to prevent overload and damage.
  • The ERA-2SM+ is designed to operate from -40°C to +85°C, but the optimal operating temperature range is between 0°C to 50°C for best performance and reliability.
  • The ERA-2SM+ is a commercial-grade component, and while it's a high-quality amplifier, it's not designed for high-reliability or space applications. For such applications, it's recommended to use radiation-hardened or high-reliability components specifically designed for those environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ERA-2SM+ Overview

Use the download button to access the ERA-2SM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ERA-2, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
