ERA-4+ - Mini-Circuits

Description: Drop-In Monolithic Amplifier SMT Gain Block, DC - 4000 MHz, 50Ω

Download ERA-4+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

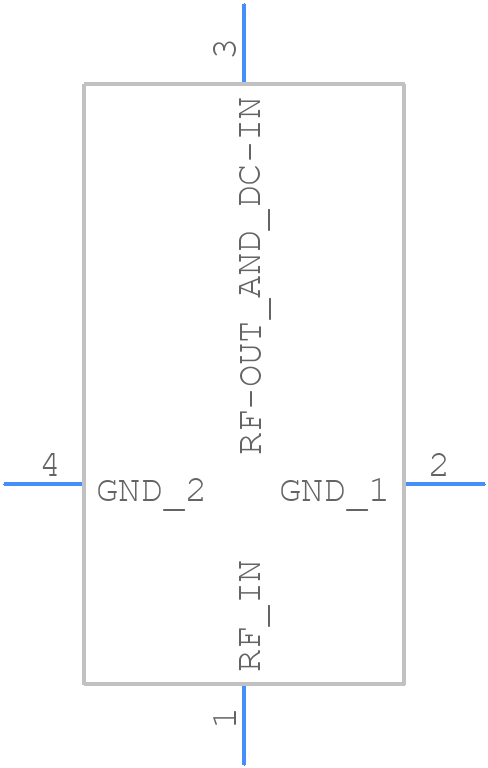

ERA-4+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ERA-4+ - Mini-Circuits PCB footprint - Other - Other - VV105(H=1.905mm)
click to zoom

ERA-4+ Details

  • Manufacturer Part Number:

    ERA-4+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.64

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    11 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e2

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -45 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.8

ERA-4+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint for ERA-4+ in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • To achieve the best possible noise figure with ERA-4+, ensure that the input and output impedances are matched to 50 ohms, and the device is operated within its recommended operating conditions. Additionally, use a high-quality PCB material and layout to minimize losses and parasitic effects.
  • The maximum input power that ERA-4+ can handle is +10 dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • Yes, ERA-4+ can be used in a push-pull configuration to improve the output power and reduce distortion. However, it's essential to ensure that the devices are properly matched and biased to achieve optimal performance.
  • The operating temperature range for ERA-4+ is -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ERA-4+ Overview

Use the download button to access the ERA-4+ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ERA-4, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
