The recommended land pattern for ERJ12ZYJ330U is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
To prevent damage, handle the ERJ12ZYJ330U by the edges or the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Avoid bending or flexing the component during assembly.
The maximum allowable voltage derating for ERJ12ZYJ330U is 80% of the rated voltage. For example, if the rated voltage is 330V, the maximum allowable voltage derating would be 264V.
ERJ12ZYJ330U is rated for operation up to 125°C. However, the component's reliability and lifespan may be affected at high temperatures. Consult the datasheet and Panasonic's application notes for guidance on high-temperature operation.
Store ERJ12ZYJ330U components in their original packaging or in a dry, cool place (less than 30°C and 60% relative humidity). Avoid exposing the components to direct sunlight, moisture, or contaminants. Follow the storage guidelines outlined in the datasheet and Panasonic's application notes.
Trust Checks
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ERJ12ZYJ330U Overview

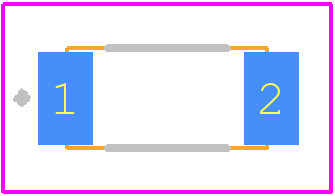

Use the download button to access the ERJ12ZYJ330U schematic symbol, PCB footprint, and 3D model.
