The recommended land pattern for ERJ1TNF5601U is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
To prevent damage, handle the ERJ1TNF5601U by the body, avoiding touching the terminals. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Avoid bending or flexing the component during assembly.
The maximum storage temperature for ERJ1TNF5601U is 40°C (104°F) for a maximum of 12 months. Storage above this temperature can affect the component's reliability and performance.
Yes, ERJ1TNF5601U is designed to withstand vibrations up to 10Hz to 200Hz, with an acceleration of 10G. However, it's recommended to perform additional testing and validation to ensure the component's reliability in your specific application.
To ensure reliable connections, use a soldering iron with a temperature of 250°C to 270°C (482°F to 518°F). Apply a small amount of solder paste or flux to the pads, and solder the component using a gentle, smooth motion. Avoid applying excessive heat or force, which can damage the component.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ERJ1TNF5601U Overview

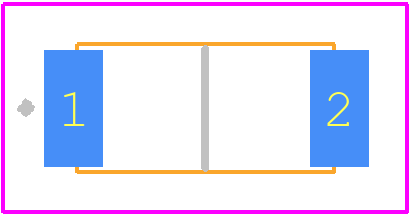

Use the download button to access the ERJ1TNF5601U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ERJ1T,
or try a keyword search, such as Metal Glaze/Thick Film Resistors
