ERJMS4HF6M0U - Panasonic

ERJMS4HF6M0U Frequently Asked Questions (FAQs)

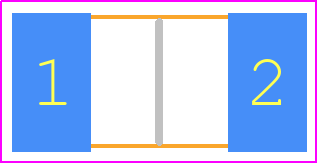

• What is the recommended land pattern for ERJMS4HF6M0U?
  The recommended land pattern for ERJMS4HF6M0U is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
• How do I handle the ERJMS4HF6M0U during reflow soldering?
  During reflow soldering, the ERJMS4HF6M0U should be placed on a flat surface to prevent warpage. The component should be exposed to a peak temperature of 260°C for no more than 10 seconds, and the total thermal exposure should not exceed 30 seconds.
• What is the maximum operating temperature range for ERJMS4HF6M0U?
  The maximum operating temperature range for ERJMS4HF6M0U is -55°C to 125°C. However, the component's electrical characteristics may degrade above 85°C, and it is recommended to operate the component within the -40°C to 85°C range for optimal performance.
• How do I store ERJMS4HF6M0U components?
  ERJMS4HF6M0U components should be stored in a dry, cool place away from direct sunlight. The storage temperature should be between -10°C to 30°C, and the humidity should be below 70%. The components should be stored in their original packaging or in a sealed bag to prevent moisture absorption.
• Can I use ERJMS4HF6M0U in a high-vibration environment?
  Yes, ERJMS4HF6M0U is designed to withstand high-vibration environments. However, it is recommended to follow the manufacturer's guidelines for vibration testing and to ensure that the component is properly secured to the PCB to prevent mechanical stress.
