ERJU12F33R0U - Panasonic

Description: Anti-Sulfurated Thick Film Chip Resistor, 1812, 0.75W

Download ERJU12F33R0U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ERJU12F33R0U - Panasonic - PCB symbol
click to zoom
PCB Footprints

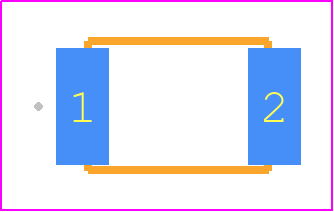

ERJU12F33R0U - Panasonic PCB footprint - Other - Other - ERJS12_U12_(1812)
click to zoom
3D Models
ERJU12F33R0U - Panasonic - 3D model - Other - ERJS12_U12_(1812)
click to zoom

ERJU12F33R0U Details

  • Manufacturer Part Number:

    ERJU12F33R0U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    10

  • Additional Feature:

    ANTI-SULFUR

  • Construction:

    Rectangular

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.6 mm

  • Package Length:

    4.5 mm

  • Package Style:

    SMT

  • Package Width:

    3.2 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Power Dissipation (P):

    0.75 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200; IEC60115-8

  • Resistance:

    33 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    1812

  • Surface Mount:

    YES

  • Technology:

    METAL GLAZE/THICK FILM

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    1%

  • Working Voltage:

    200 V

ERJU12F33R0U Frequently Asked Questions (FAQs)

  • The recommended land pattern for ERJU12F33R0U is a rectangular pad with a size of 1.3mm x 0.6mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component body.
  • The maximum allowable voltage for ERJU12F33R0U is 75V, which is higher than the rated voltage of 50V. However, it's recommended to operate the resistor within the rated voltage to ensure reliability and performance.
  • The resistance value of ERJU12F33R0U changes with temperature. The temperature coefficient of resistance (TCR) is ±100 ppm/°C, which means the resistance value changes by ±0.01% for every 1°C change in temperature.
  • ERJU12F33R0U is a general-purpose thick-film chip resistor, and it's not optimized for high-frequency applications. For high-frequency use, it's recommended to use a thin-film chip resistor or a specialized high-frequency resistor.
  • The moisture sensitivity level (MSL) of ERJU12F33R0U is MSL 2, according to J-STD-020. This means the component can withstand a maximum of 4 hours of exposure to 30°C/60% RH before soldering.
