The recommended power-up sequence is to power up the digital core (VDD) first, followed by the analog power supply (AVDD) and finally the PLL power supply (PVDD). This sequence helps prevent latch-up and ensures proper device operation.
The ES8311 can be configured using the I2C or SPI interface. The device has multiple registers that control various functions such as gain settings, filter configurations, and clock settings. Refer to the datasheet and application notes for specific register settings and configuration examples.
The ES8311 supports clock frequencies up to 50 MHz for the digital core and 128 fs (38400 kHz) for the audio interface. However, the actual clock frequency used depends on the specific application and system requirements.
To optimize the ES8311 for low power consumption, use the power-down modes (e.g., DPD, APD, and CPD) when the device is not in use. Additionally, adjust the clock frequency, voltage supply, and bias current settings to minimize power consumption. Refer to the datasheet and application notes for specific guidelines.
The typical settling time for the ES8311's ADC is around 10-15 clock cycles, depending on the clock frequency and system configuration. This settling time ensures accurate conversion of analog signals to digital codes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ES8311 Overview

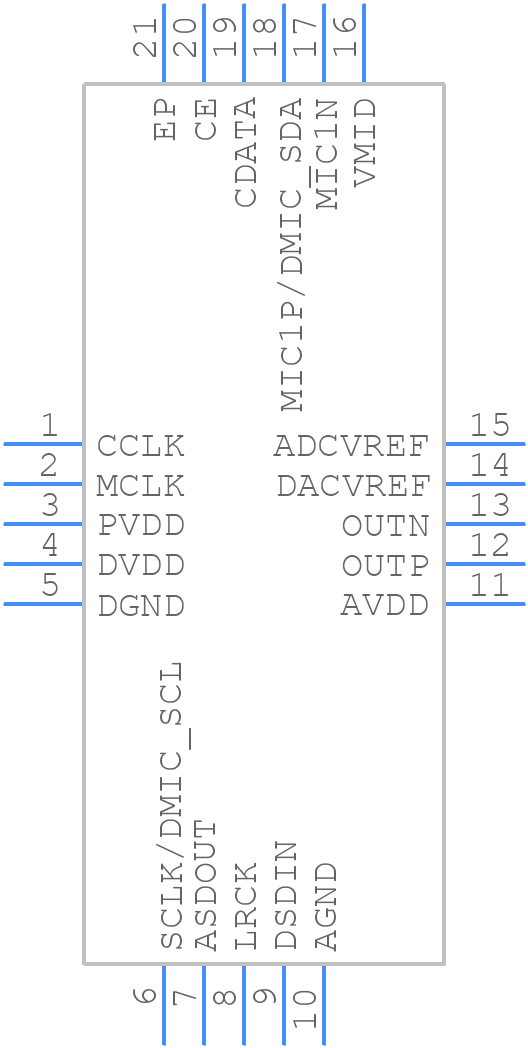

Use the download button to access the ES8311 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ES831,
or try a keyword search, such as Codecs
