ES9822QPRO - ESS Technology

Description: Analog to Digital Converters - ADC Sabre stereo reference PRO ADC5 mm x 5mm, 40 pin QFN

Download ES9822QPRO Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

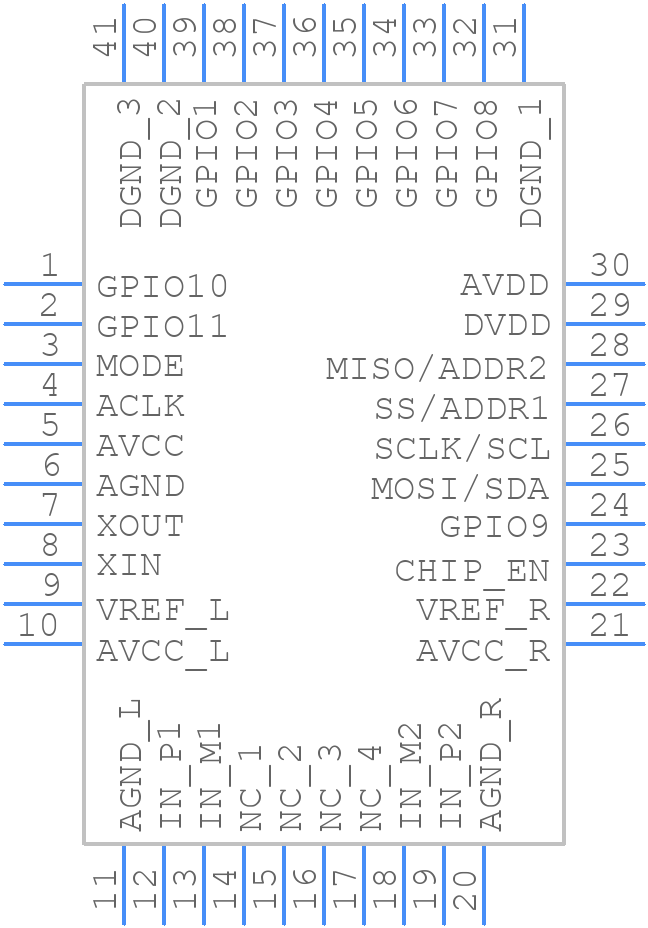

ES9822QPRO - ESS Technology - PCB symbol
click to zoom
PCB Footprints
ES9822QPRO - ESS Technology PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - mm x 5mm, 40 pin QFN
click to zoom
3D Models
ES9822QPRO - ESS Technology - 3D model - Quad Flat No-Lead - mm x 5mm, 40 pin QFN
click to zoom

ES9822QPRO Details

  • Manufacturer Part Number:

    ES9822QPRO

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-40

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Ess Technology Inc

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N40

  • Number of Analog In Channels:

    2

  • Number of Bits:

    32

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC40(UNSPEC)

  • Package Shape:

    SQUARE

  • Sample Rate:

    0.768 MHz

  • Supply Voltage-Nom:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD
