ESD5384NCTBG - onsemi

Description: Obsolete - ESD Protection Diode

Download ESD5384NCTBG Model

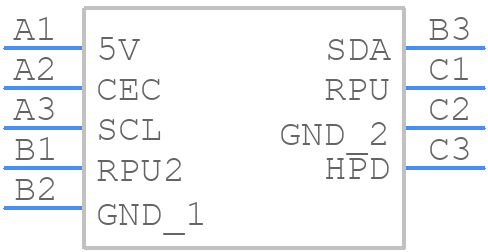

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ESD5384NCTBG - onsemi PCB footprint - BGA - BGA - WLCSP9, 1.14x1.14 CASE 567CX−01 ISSUE O_1
click to zoom
3D Models
ESD5384NCTBG - onsemi  - 3D model - BGA - WLCSP9, 1.14x1.14 CASE 567CX−01 ISSUE O_1
click to zoom

ESD5384NCTBG Details

  • Manufacturer Part Number:

    ESD5384NCTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WLCSP9, 1.14x1.14

  • Package Description:

    1.14 X 1.14 MM, 0.605 MM HEIGHT, LEAD FREE, WLCSP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    567CX

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.14 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.63 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.14 mm

ESD5384NCTBG Frequently Asked Questions (FAQs)

  • A good PCB layout for ESD5384NCTBG involves placing the device close to the connector or interface it's protecting, using short traces, and minimizing the distance between the device and the protected circuit. A ground plane under the device can also help to reduce parasitic inductance.
  • The recommended capacitor value for the VCC pin is 1-10uF, depending on the specific application and noise requirements. A larger capacitor value can help to filter out noise, but may also increase the device's power-up time.
  • The maximum operating temperature for the ESD5384NCTBG is 125°C, but it's recommended to operate the device at a temperature below 85°C for optimal performance and reliability.
  • Yes, the ESD5384NCTBG is suitable for high-speed interfaces like USB or HDMI, thanks to its low capacitance and high surge capability. However, it's essential to follow proper PCB layout and design guidelines to minimize signal degradation and ensure reliable operation.
  • To ensure proper soldering and connection, follow the recommended soldering profile and PCB footprint guidelines provided by onsemi. Use a soldering iron with a temperature of 260°C (max) and a solder with a melting point of 217°C (min).
