ESD7004MUTAG - onsemi

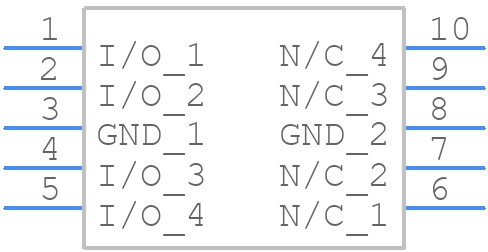

ESD7004MUTAG Details

• Manufacturer Part Number:

  ESD7004MUTAG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  UDFN10, 2.5x1, 0.5P

• Package Description:

  UDFN-10

• Pin Count:

  10

• Manufacturer Package Code:

  517BB

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.50

• Manufacturer:

  onsemi

• YTEOL:

  6

• Breakdown Voltage-Min:

  5.5 V

• Case Connection:

  ANODE

• Clamping Voltage-Max:

  10 V

• Configuration:

  COMMON ANODE, 4 ELEMENTS, 4 CHANNEL

• Diode Element Material:

  SILICON

• Diode Type:

  TRANS VOLTAGE SUPPRESSOR DIODE

• JESD-30 Code:

  R-PDSO-N10

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Peak Rev Power Dis-Max:

  10 W

• Number of Elements:

  4

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity:

  UNIDIRECTIONAL

• Qualification Status:

  Not Qualified

• Reference Standard:

  IEC-61000-4-2

• Rep Pk Reverse Voltage-Max:

  5 V

• Reverse Current-Max:

  1 µA

• Reverse Test Voltage:

  5 V

• Surface Mount:

  YES

• Technology:

  AVALANCHE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30
