A good PCB layout for optimal ESD protection involves placing the ESD7008MUTAG close to the connector or interface it is protecting, using short traces, and minimizing the distance between the device and the protected circuit. Additionally, a solid ground plane and a low-impedance path to ground are essential.
To choose the correct ESD protection device, consider the following factors: the type and level of ESD protection required, the operating voltage and current of the circuit, the package type and size constraints, and the environmental conditions of the application.
The ESD7008MUTAG is a unidirectional ESD protection device, whereas some other onsemi devices are bidirectional. The ESD7008MUTAG also has a lower capacitance and a smaller package size compared to some other devices, making it suitable for high-speed interfaces and compact designs.
To ensure proper soldering and connection, follow the recommended soldering profile, use a solder with a high melting point, and ensure that the device is properly aligned with the PCB pads. Additionally, inspect the solder joints for any defects or cold joints.
The ESD7008MUTAG meets various reliability and quality standards, including AEC-Q101, IEC 61000-4-2, and ISO 16750-2. It is also manufactured in accordance with onsemi's quality management system, which is certified to ISO 9001.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESD7008MUTAG Overview

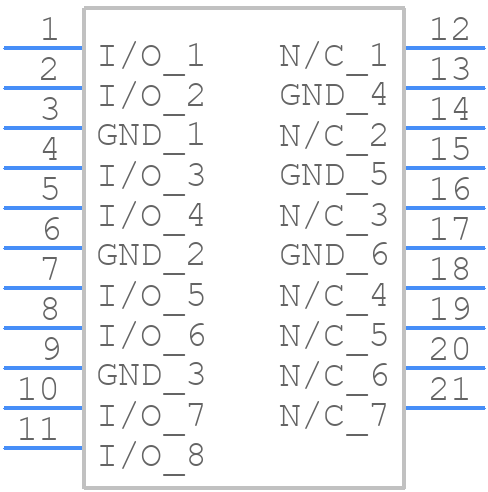

Use the download button to access the ESD7008MUTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESD70,
or try a keyword search, such as Transient Suppressors
