A good PCB layout for ESD8006MUTAG involves keeping the device close to the connector, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a common ground point for the device and the connector.
The ESD8006MUTAG requires a 3.3V or 5V power supply, and it's essential to ensure a stable power supply with minimal noise and ripple. A decoupling capacitor of 10nF to 100nF should be placed close to the device to filter out noise.
The ESD8006MUTAG can support cable lengths up to 3 meters, but the actual length may vary depending on the specific application, cable quality, and signal frequency. It's recommended to test the device with the specific cable and application to determine the maximum supported length.
To troubleshoot ESD8006MUTAG issues, start by checking the power supply and ensuring it's within the recommended range. Then, verify the signal integrity and check for any signs of electrical overstress. Use an oscilloscope to analyze the signal waveform and identify any anomalies.
Yes, the ESD8006MUTAG is designed to support high-speed signals up to 10 Gbps. However, the actual signal speed and quality may vary depending on the specific application, cable quality, and PCB layout.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESD8006MUTAG Overview

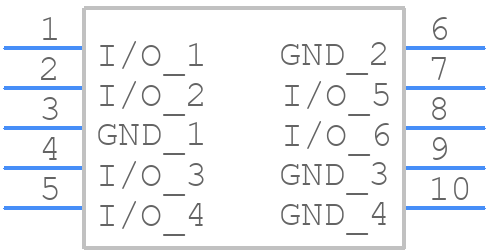

Use the download button to access the ESD8006MUTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESD80,
or try a keyword search, such as Transient Suppressors
