ESD8018MUTAG - onsemi

Description: Obsolete - LVDS ESD Protection Array

Download ESD8018MUTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

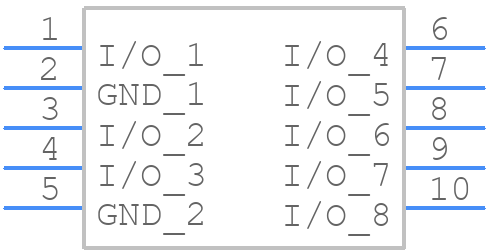

Symbol
ESD8018MUTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
ESD8018MUTAG - onsemi PCB footprint - Other - Other - ESD8018MUTAG-2
click to zoom
3D Models
ESD8018MUTAG - onsemi - 3D model - Other - ESD8018MUTAG-2
click to zoom

ESD8018MUTAG Details

  • Manufacturer Part Number:

    ESD8018MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    UDFN-10

  • Package Description:

    UDFN-10, 10 PIN

  • Manufacturer Package Code:

    517CY

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ULTRA LOW CAPACITANCE

  • Breakdown Voltage-Min:

    5.5 V

  • Breakdown Voltage-Nom:

    7 V

  • Case Connection:

    ANODE

  • Clamping Voltage-Max:

    4.8 V

  • Configuration:

    COMMON ANODE, 8 ELEMENTS, 8 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    Trans Voltage Suppressor Diode

  • JESD-30 Code:

    R-PDSO-N10

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    8

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-5

  • Rep Pk Reverse Voltage-Max:

    3.3 V

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

ESD8018MUTAG Frequently Asked Questions (FAQs)

  • A good PCB layout for ESD8018MUTAG involves keeping the device close to the protected line, using short traces, and minimizing the distance between the device and the connector. A ground plane under the device is also recommended.
  • The capacitor value depends on the application and the desired level of ESD protection. A general guideline is to use a capacitor with a value between 1nF to 10nF. However, it's recommended to consult the application note or contact onsemi support for specific guidance.
  • The maximum operating temperature for ESD8018MUTAG is 125°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
  • Yes, ESD8018MUTAG can be used for both data lines and power lines. However, it's essential to ensure that the device is properly sized for the specific application and that the maximum ratings are not exceeded.
  • To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point below 260°C. Avoid overheating the device, and use a soldering iron with a temperature control.
