A good PCB layout for optimal ESD protection involves placing the ESD8106MUTAG close to the connector or interface, using short traces, and minimizing the distance between the device and the protected lines. Additionally, a solid ground plane and a low-impedance path to ground can help to reduce the impedance of the ESD current path.
The capacitor value depends on the specific application and the frequency range of interest. A general guideline is to use a capacitor value between 1nF to 10nF. A smaller capacitor value can provide better high-frequency ESD protection, while a larger capacitor value can provide better low-frequency ESD protection. It's recommended to consult the application note or contact onsemi support for specific guidance.
The ESD8106MUTAG is rated for operation from -40°C to 125°C. However, it's recommended to derate the device's performance at extreme temperatures. Consult the datasheet or contact onsemi support for specific guidance on temperature derating.
Yes, the ESD8106MUTAG is suitable for ESD protection in high-speed interfaces such as USB or HDMI. It has a low capacitance and low inductance, which makes it suitable for high-frequency applications. However, it's recommended to consult the application note or contact onsemi support for specific guidance on using the device in high-speed interfaces.
To ensure proper soldering, follow the recommended soldering profile and handling procedures outlined in the datasheet. Use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or pressure to the device during soldering, and ensure that the device is properly aligned with the PCB pads.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESD8106MUTAG Overview

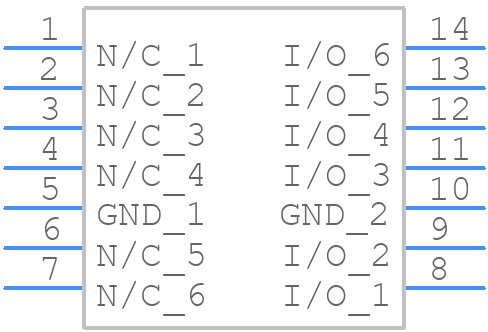

Use the download button to access the ESD8106MUTAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESD81,
or try a keyword search, such as Transient Suppressors
