ESDA25B1 - STMicroelectronics

Description: TVS Diode Array Bi-Directional ESDA25B1 Array, 150W, SO-8 8-Pin

Download ESDA25B1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

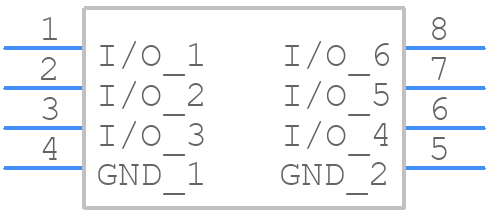

ESDA25B1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ESDA25B1 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8 height 1.75
click to zoom
3D Models
ESDA25B1 - STMicroelectronics - 3D model - Small Outline Packages - SO-8 height 1.75
click to zoom

ESDA25B1 Details

  • Manufacturer Part Number:

    ESDA25B1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOD

  • Package Description:

    PLASTIC, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Breakdown Voltage-Max:

    30 V

  • Breakdown Voltage-Min:

    25 V

  • Breakdown Voltage-Nom:

    27.5 V

  • Configuration:

    COMPLEX, 6 CHANNEL

  • Diode Capacitance-Min:

    15 pF

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    150 W

  • Number of Elements:

    8

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    IEC-1000-4-2, MIL-STD-883C

  • Rep Pk Reverse Voltage-Max:

    24 V

  • Reverse Current-Max:

    2 µA

  • Reverse Test Voltage:

    24 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

ESDA25B1 Frequently Asked Questions (FAQs)

  • A good PCB layout for ESDA25B1 should have a short and direct connection to the protected line, with a ground plane nearby to dissipate the ESD energy. The device should be placed close to the connector or interface to be protected.
  • The choice of package type (SOT23, SOT323, or μQFN) depends on the available PCB space, thermal considerations, and the desired level of ESD protection. SOT23 is a good all-around choice, while SOT323 is more compact and μQFN offers better thermal performance.
  • The maximum operating voltage for ESDA25B1 is 5.5V, but it can withstand up to 12V for a short duration (e.g., during an ESD event). Operating the device above 5.5V may reduce its lifespan.
  • Yes, ESDA25B1 is suitable for protecting high-speed interfaces like USB or HDMI. Its low capacitance (0.4pF) and high bandwidth (>1GHz) make it an ideal choice for these applications.
  • To ensure proper soldering, follow the recommended soldering profile, use a solder with a melting point below 260°C, and avoid applying excessive heat or force to the device. Inspect the solder joints for any defects or cold solder joints.
