The recommended PCB layout and land pattern for ESDLC0504P3-TP can be found in the Micro Commercial Components' application note AN-001, which provides guidelines for optimal PCB design and layout to ensure reliable operation and minimize ESD damage.
The ESDLC0504P3-TP protects against ESD events by using a combination of voltage clamping and current limiting to divert the ESD energy away from the protected circuit. It also has a low capacitance of 0.5pF, which minimizes signal distortion and attenuation.
Yes, the ESDLC0504P3-TP is designed to protect high-speed signals up to 3GHz, making it suitable for use in high-frequency applications such as HDMI, USB, and Ethernet interfaces.
The ESDLC0504P3-TP has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and consumer electronics.
Yes, the ESDLC0504P3-TP is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in applications that require environmental compliance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESDLC0504P3-TP Overview

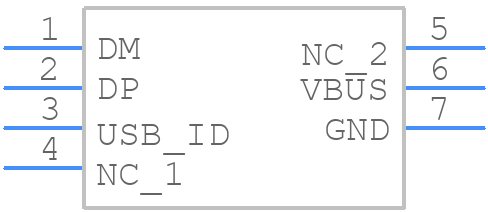

Use the download button to access the ESDLC0504P3-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESDLC,
or try a keyword search, such as Transient Suppressors
