ESDLC0554P3-TP - MCC

Description: ESD Protection Devices

Download ESDLC0554P3-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

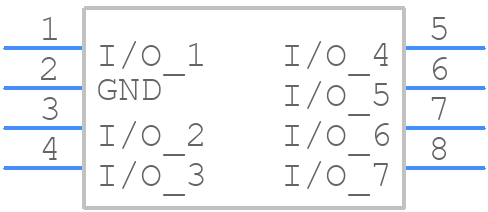

ESDLC0554P3-TP - MCC - PCB symbol
click to zoom
PCB Footprints
ESDLC0554P3-TP - MCC PCB footprint - Other - Other - DFN1616-6L
click to zoom
3D Models
ESDLC0554P3-TP - MCC - 3D model - Other - DFN1616-6L
click to zoom

ESDLC0554P3-TP Details

  • Manufacturer Part Number:

    ESDLC0554P3-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN1616, 6 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6

  • Clamping Voltage-Max:

    22 V

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    S-PDSO-N6

  • Non-rep Peak Rev Power Dis-Max:

    240 W

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Rep Pk Reverse Voltage-Max:

    5.5 V

  • Reverse Current-Max:

    0.1 µA

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

ESDLC0554P3-TP Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for ESDLC0554P3-TP can be found in the Micro Commercial Components' application note AN-001, which provides guidelines for optimal PCB design and layout to ensure reliable operation and minimize ESD damage.
  • The ESDLC0554P3-TP protects against surge and overvoltage events by using a combination of TVS diodes and resistors to clamp and divert excessive voltage and current away from the protected circuit. The device can withstand surge voltages up to 30kV and has a response time of <1ns.
  • The maximum operating temperature range for the ESDLC0554P3-TP is -40°C to +125°C, making it suitable for use in a wide range of industrial and commercial applications.
  • Yes, the ESDLC0554P3-TP is compatible with various automotive and industrial standards, including IEC 61000-4-2, ISO 10605, and SAE J1113/11, making it suitable for use in demanding applications such as automotive, industrial, and medical devices.
  • The typical lead time for the ESDLC0554P3-TP is 6-8 weeks, and the minimum order quantity (MOQ) is 1,000 pieces. However, lead times and MOQs may vary depending on the specific requirements and availability of the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESDLC0554P3-TP Overview

Use the download button to access the ESDLC0554P3-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESDLC, or try a keyword search, such as Transient Suppressors
