ESDLC3304P8-TP - MCC

Description: 20V Clamp 25A (8/20µs) Ipp Tvs Diode Surface Mount DFN2626-10

Download ESDLC3304P8-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

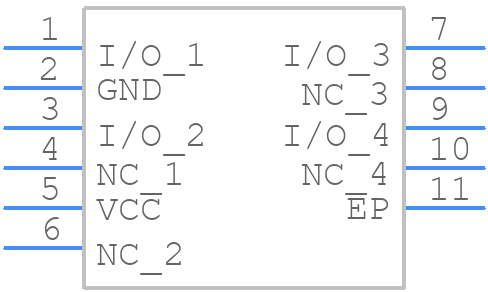

ESDLC3304P8-TP - MCC - PCB symbol
click to zoom
PCB Footprints
ESDLC3304P8-TP - MCC PCB footprint - Other - Other - ESDLC3304P8-TP-1
click to zoom
3D Models
ESDLC3304P8-TP - MCC - 3D model - Other - ESDLC3304P8-TP-1
click to zoom

ESDLC3304P8-TP Details

  • Manufacturer Part Number:

    ESDLC3304P8-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN2626-10, 10 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6.93

  • Clamping Voltage-Max:

    18 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N10

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    450 W

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    3.3 V

  • Reverse Current-Max:

    0.5 µA

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

ESDLC3304P8-TP Frequently Asked Questions (FAQs)

  • The recommended PCB layout for ESDLC3304P8-TP involves placing the device close to the protected line, using short traces, and minimizing the distance between the device and the protected component. Additionally, a ground plane should be used to reduce noise and improve ESD protection.
  • The ESDLC3304P8-TP is designed to handle surge currents up to 30A (8/20μs) and can withstand multiple ESD strikes without degradation. The device's surge current capability is due to its low impedance and high-power handling capabilities.
  • The operating temperature range of ESDLC3304P8-TP is -40°C to 125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and consumer electronics.
  • Yes, the ESDLC3304P8-TP is compatible with high-speed signals up to 10 Gbps and is designed to minimize signal distortion and attenuation. The device's low capacitance and high-bandwidth characteristics make it suitable for use in high-speed applications.
  • The typical response time of ESDLC3304P8-TP to an ESD event is less than 1 ns, which is fast enough to protect sensitive components from ESD damage. The device's fast response time is due to its low impedance and high-speed switching characteristics.
